AXON

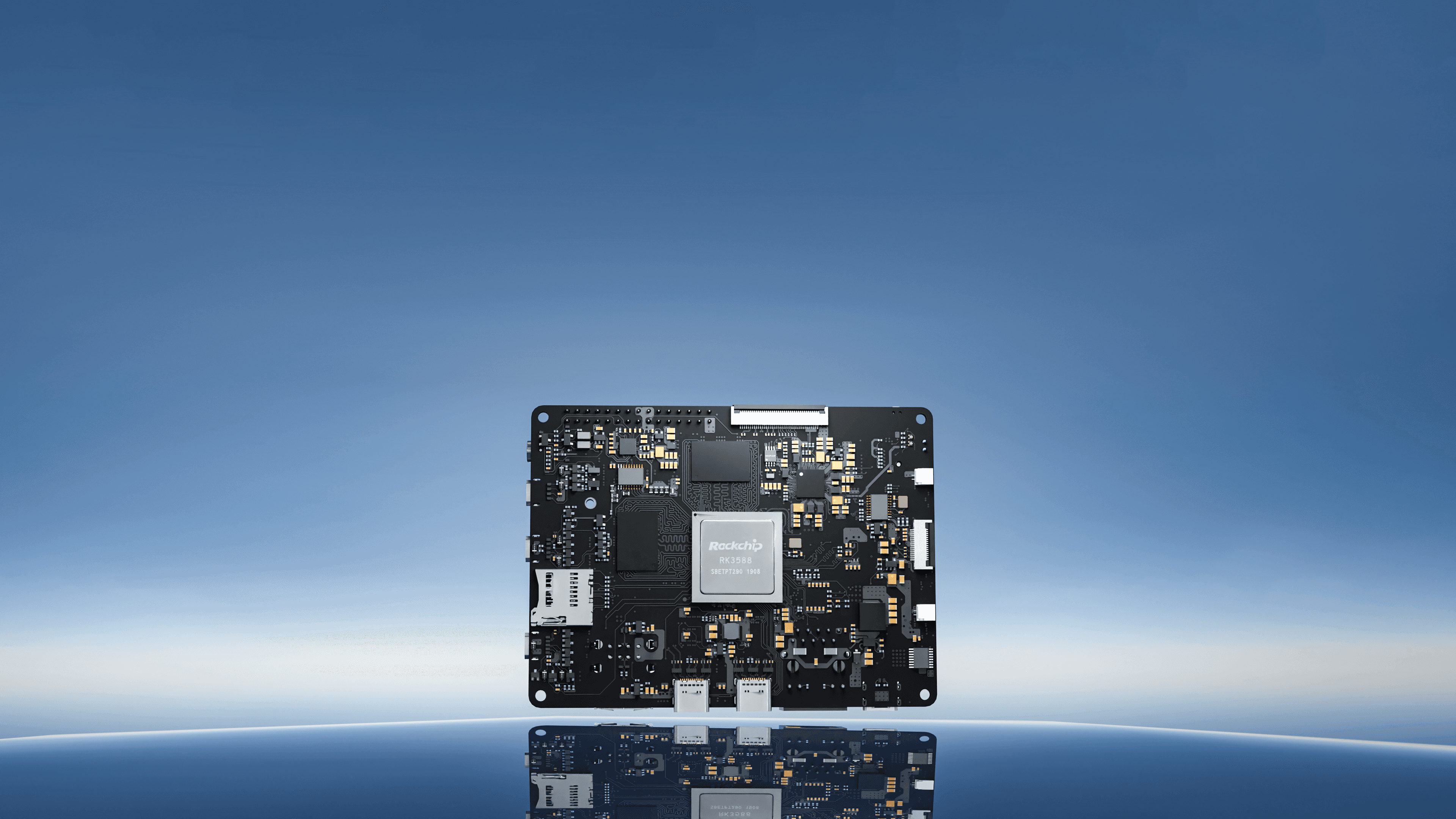

Rockchip RK3588S ARM PC with 6 Tops NPU & 8K Display

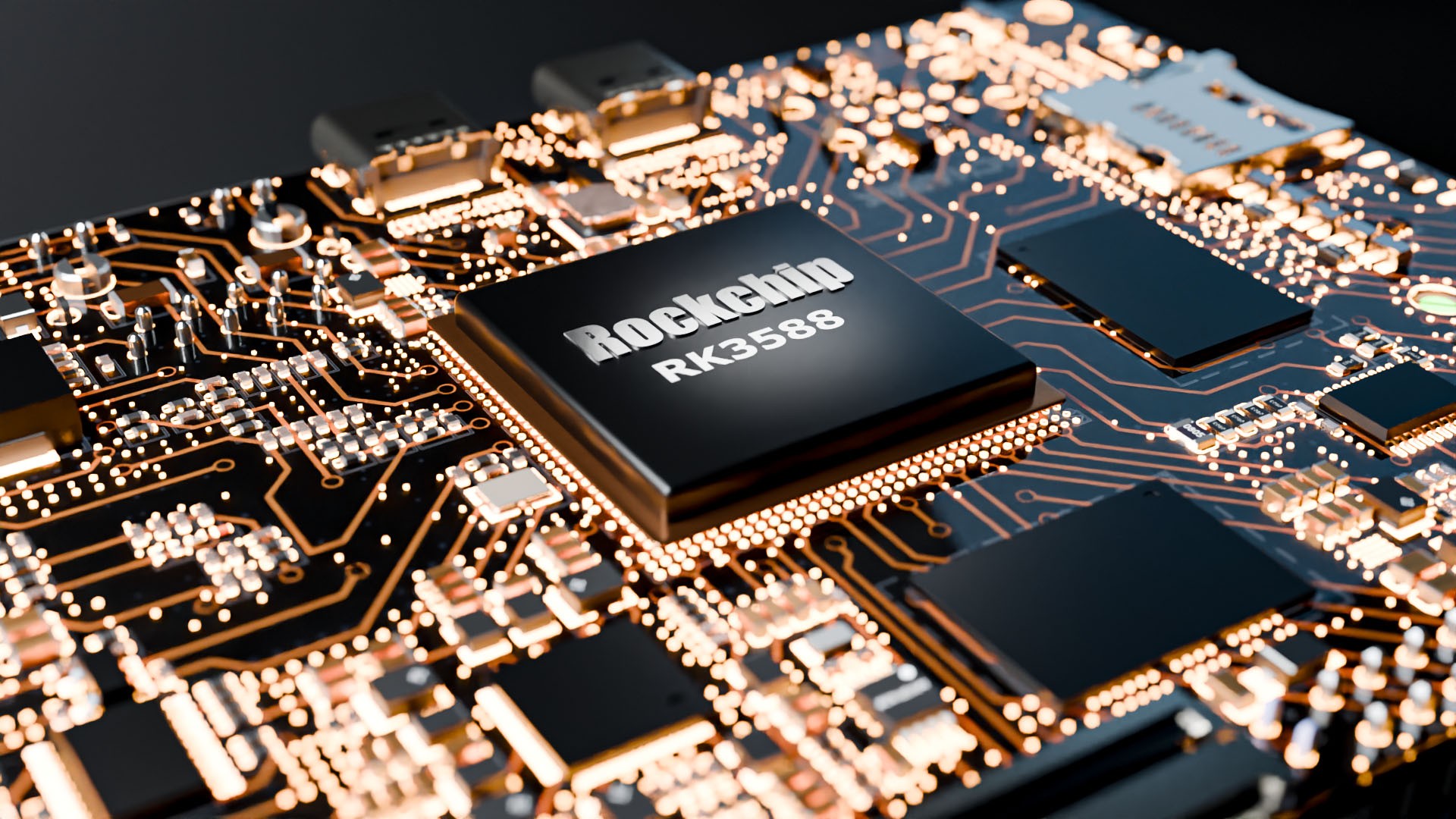

Rockchip RK3588

a new generationof high-end processor

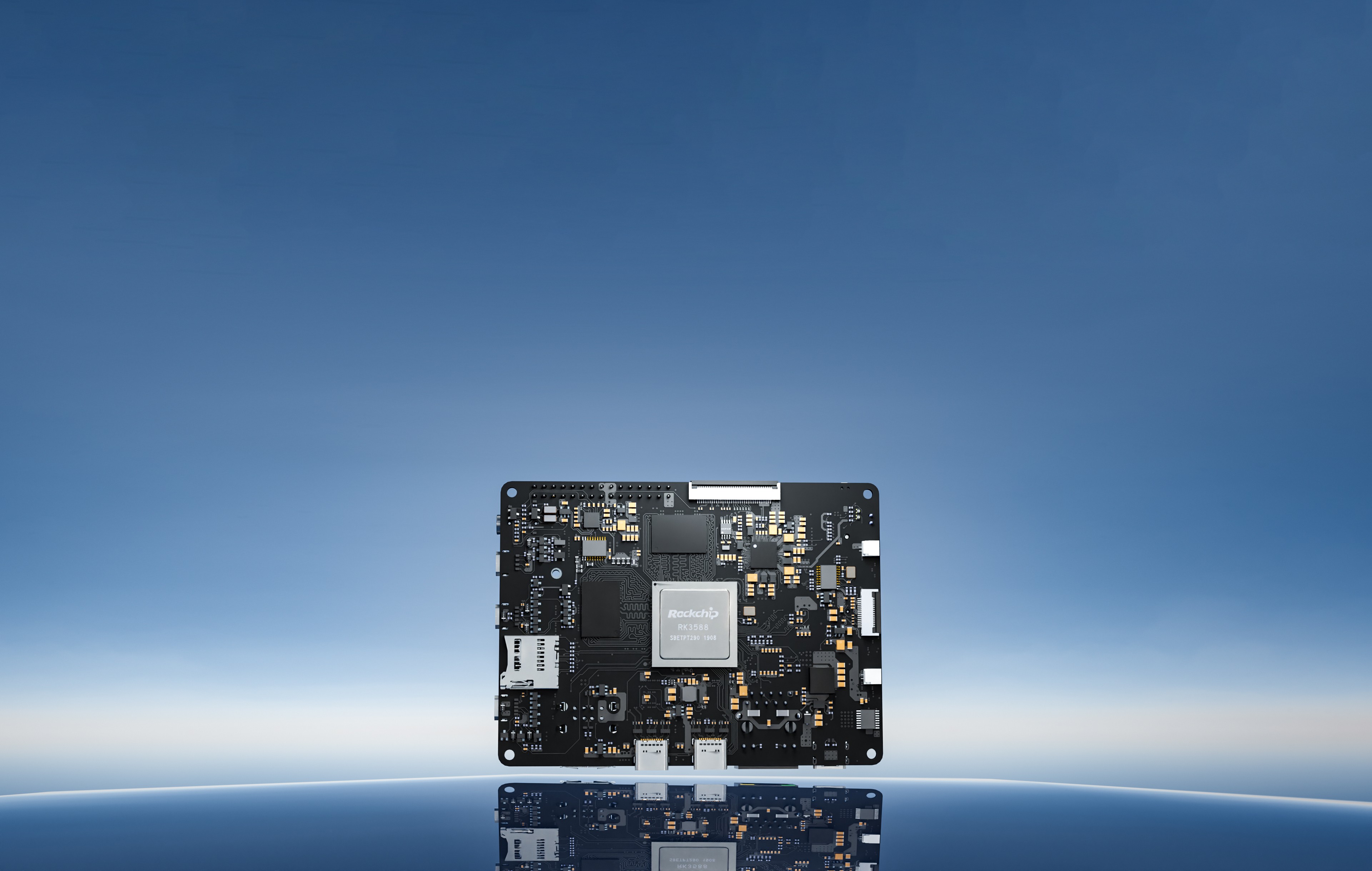

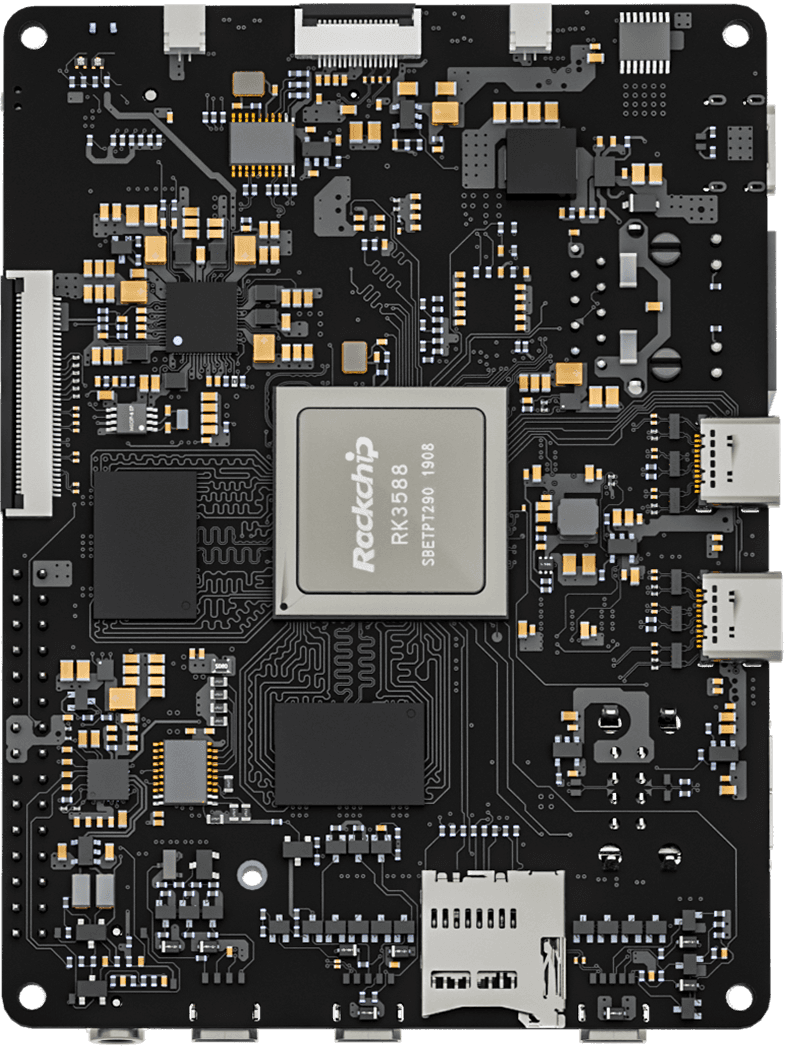

AXON is powered by the RK3588S, a next generation 8-core 64-bit SoC from Rockchip. The RK3588S is Rockchip's newest flagship IoT SoC utilizing the 8 nanometer lithography process. As a result, power consumption is similar to the RK3399, yet we have achieved an overall performance boost of up to 2.5 times.

Specification

Extreme GPU Performance

The RK3588 has an integrated 4-core GPU, the ARM Mali-G610 MP4 (up to 1GHz clock speed) which supports a lag-free 4K user interface. 3D rendering has been greatly improved and you can play expansive open-world online games, console games and even some AAA titles

High Performance NPU

The RK3588 has a built-in NPU which provides up to 6 TOPS (tera operations per second) of neural network processing. The NPU supports mainstream deep learning frameworks, such as TensorFlow, Pytorch, MxNET and so on. The powerful RK3588S brings optimized neural network performance to various A.I. applications.

Quad Display Interfaces

x1 HDMI, x1 USB-C, x2 DSI

Edge2’s hardware supports up to four independent displays. This greatly expands the potential applications of Edge2 in multi-display scenarios such as digital signage, development and gaming.

8K Decoding & Encoding

Powerful video encoding and decoding capabilities enable Edge2 to output beautifully crisp and clear 8K HD resolution. This will greatly expand the potential applications of Edge2 in multi-display environments such as digital signage, entertainment and gaming.

Decoding: x1 8K@60fps / x32 1080P@60fps channels (H.265/VP9) Encoding: x1 8K@30fps / x16 1080P@30fps channels (H.265/H.264)

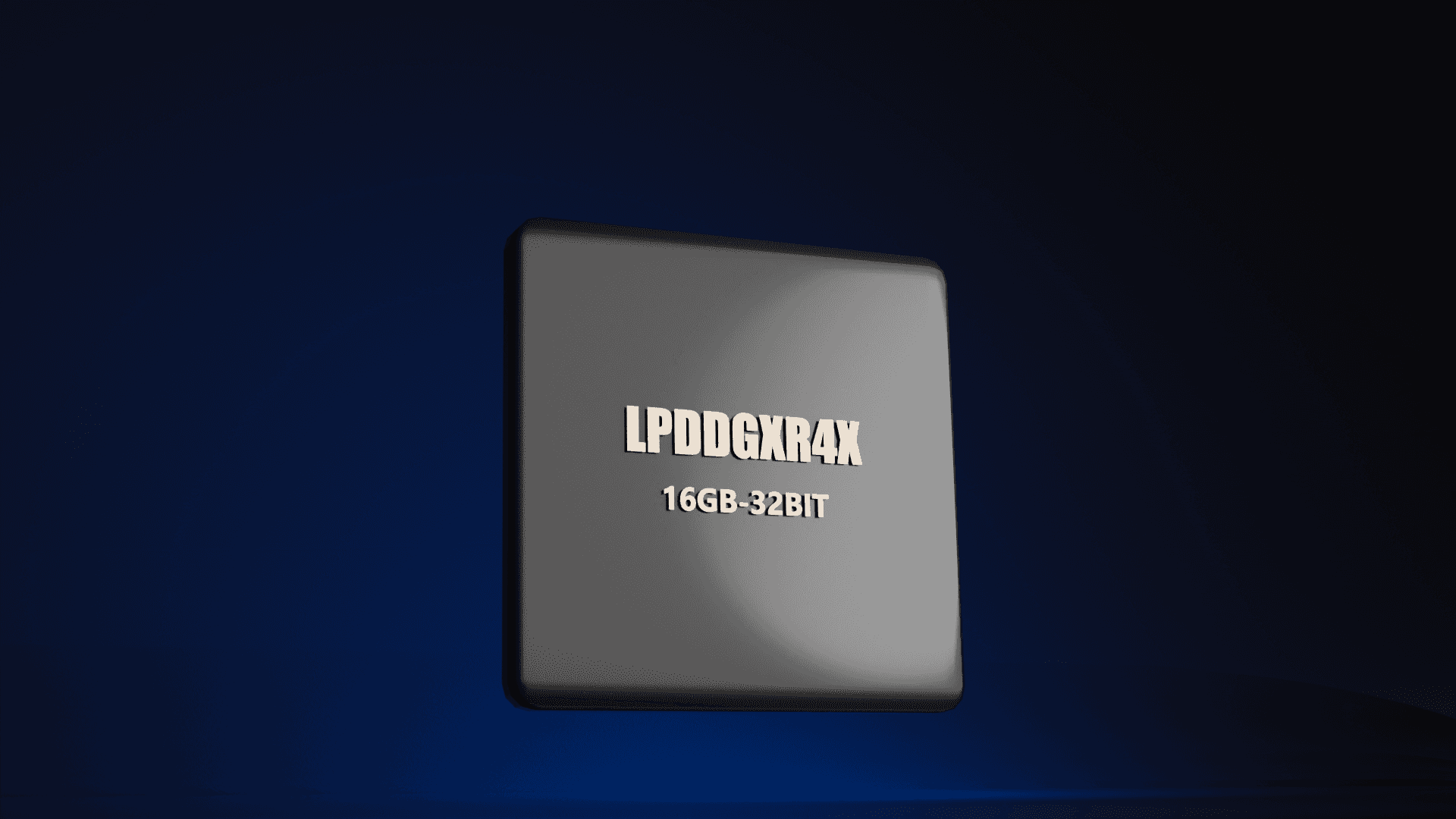

Large RAM Capacity

The Axon supports up to 16GB of RAM! Run multiple applications simultaneously whilst still having a smooth and lag-free experience.

Basic: 8GB 64-bit 2112MHz LPDDR4X + 32GB eMMC 5.1 Pro: 16GB 64-bit 2112MHz LPDDR4X + 64GB eMMC 5.1

High Speed Wireless

Axon integrates the Ampak AP6275P Wi-Fi 6 PCIe module, which is capable of high-speed wireless data transmission. This module supports IEEE 802.11 b/n/g/a/ac/ax and 2T2R for greater bandwidth. This advanced wireless transceiver module makes data transmission stable and fast. Bluetooth 5.0 is supported as well.

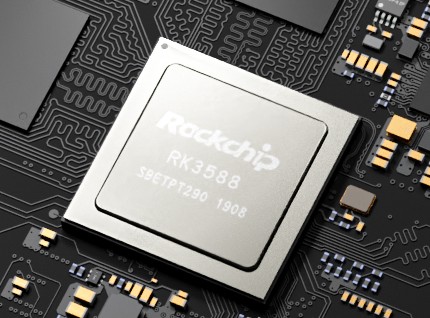

RK3588 a new generation of high-end processor

RK3588 is Rockchip's new-gen flagship AIoT SoC with 8nm lithography process. Equipped with 8-core 64-bit CPU, it has frequency
up to 2.4GHz. Integrated with ARM Mali-G610 MP4 quad-core GPU and built-in AI accelerator NPU, it provides 6Tops computing
power and supports mainstream deep learning frameworks. The powerful RK3588S can deliver more optimized performance in various
AI application scenarios.

CPU 8-Core A76+A55, Frequency 2.4GHz

RK3588

4times improved

RK3399

CPU Quad-Core Mali-G610

RK3588

8times improved

RK3399

NPU
6Tops

RK3588

Super-large 32GB RAM

Up to 32GB of super-large RAM can be configured, which exceeds the limit of the previous RAM and delivers a faster response speed. It
can meet the application requirements of products with large RAM and large storage.

RK3588

32GB

RK3568

8GB

RK3399

4GB

Strong network communication capability

On-board 1000Mbps RJ45 Ethernet, 2.4GHz/5GHz dual-band WiFi and Bluetooth 4.2 are supported. This powerful network communication capability makes data transmission more stable and faster.

WiFi

Bluetooth

1000 Mbps

Octa Core Processor

AXON is equipped with an 8-core 64-bit CPU (up to 2.25GHz clock speed). x4 2.25GHz Cortex-A76 performance cores are paired with x4 1.8GHz Cortex-A55 efficiency cores.

NVMe SSD, Massive capacity

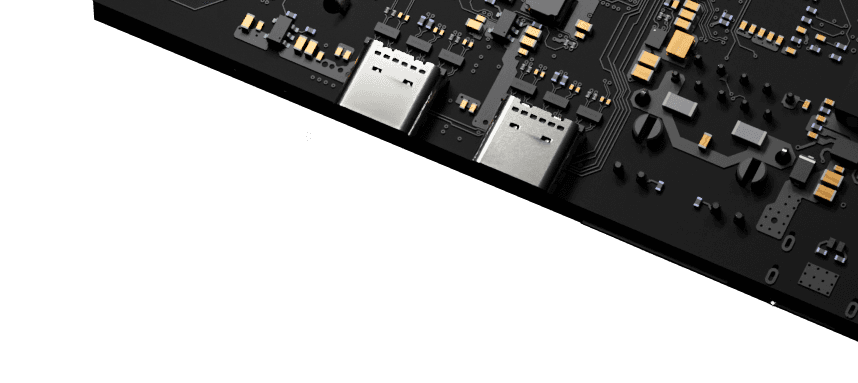

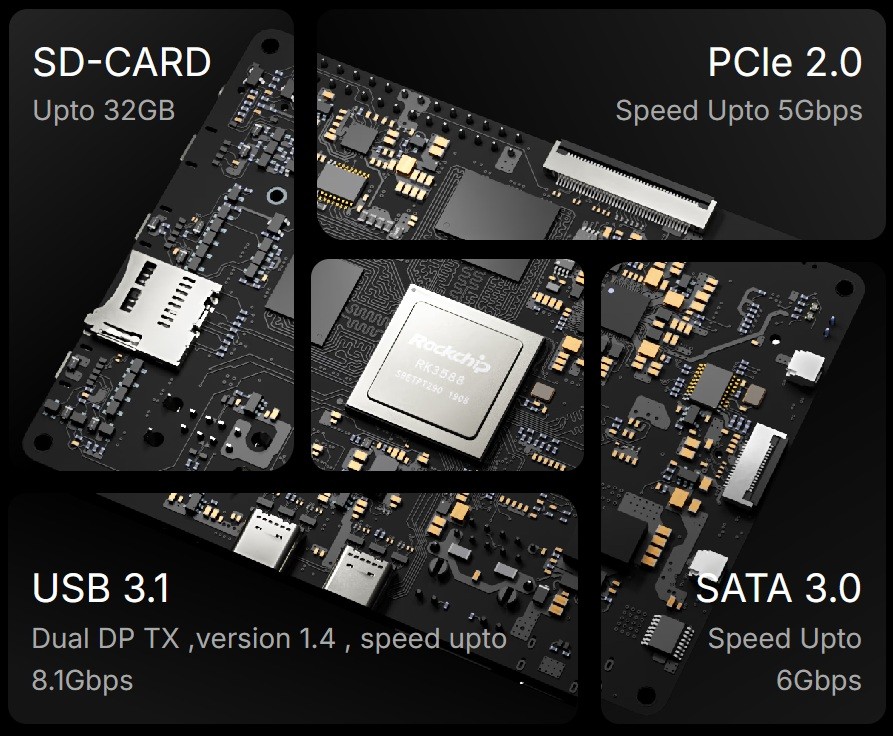

MIPI-DSI, MIPI-DSI1, MIPI-DSI0, HDMI2.1, USB3.0, USB2.0, USB-C, M.2 PCIe2.0 and GbE are configured.
Abundant resources

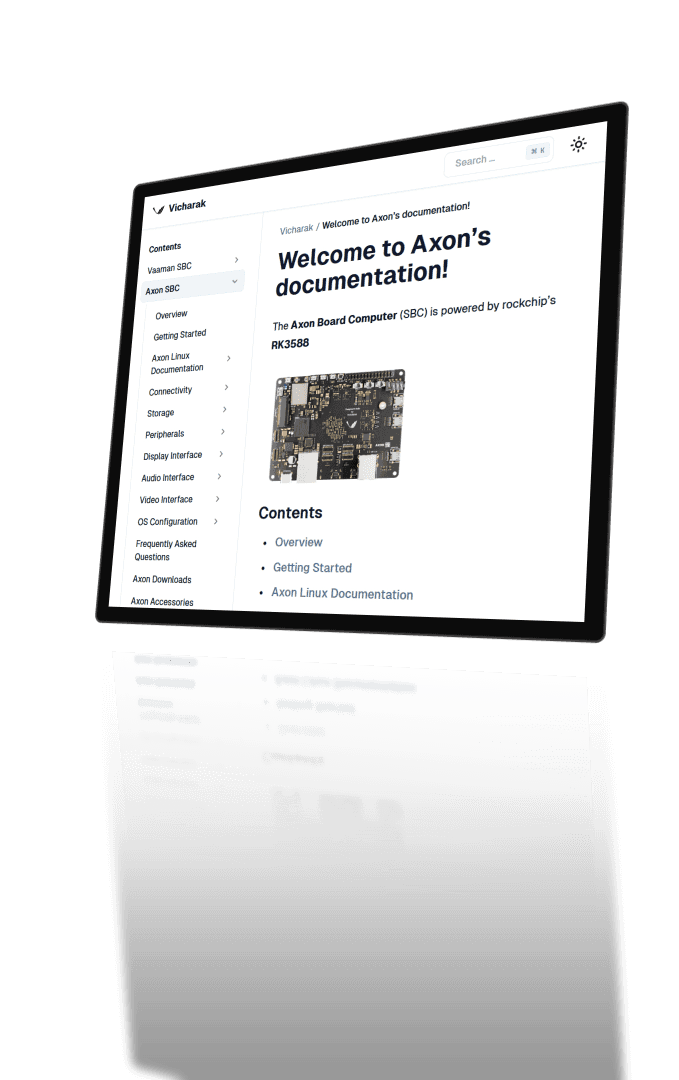

SDK, tutorials, tech docs and dev tools are provided, making development simpler and more convenient.
Support various operating systems
Android 12.0, Ubuntu Desktop version and Server version, Debian11, Buildroot, Kylin and UOS are supported. It supports RTLinux,
delivering excellent real-time performance. UEFI Boot is also available. The reliable operation provides a safe and stable system environment
for product research and production.
A wide range of applications
The mainboard can be widely used in edge computing, Artificial Intelligence, cloud computing, VR/AR, blockchain,
smart security, smart home, intelligent retail and smart industry.
