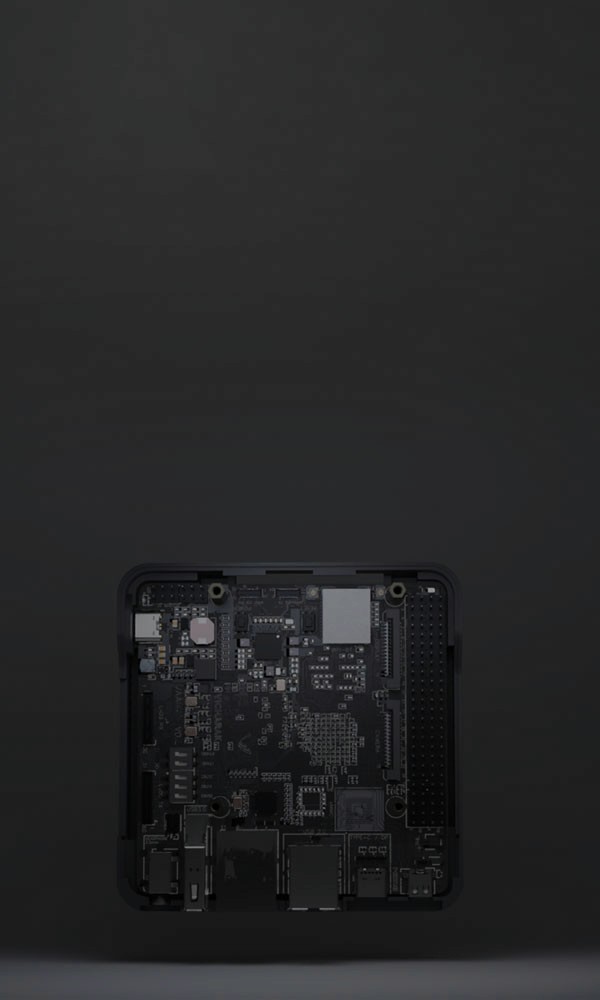

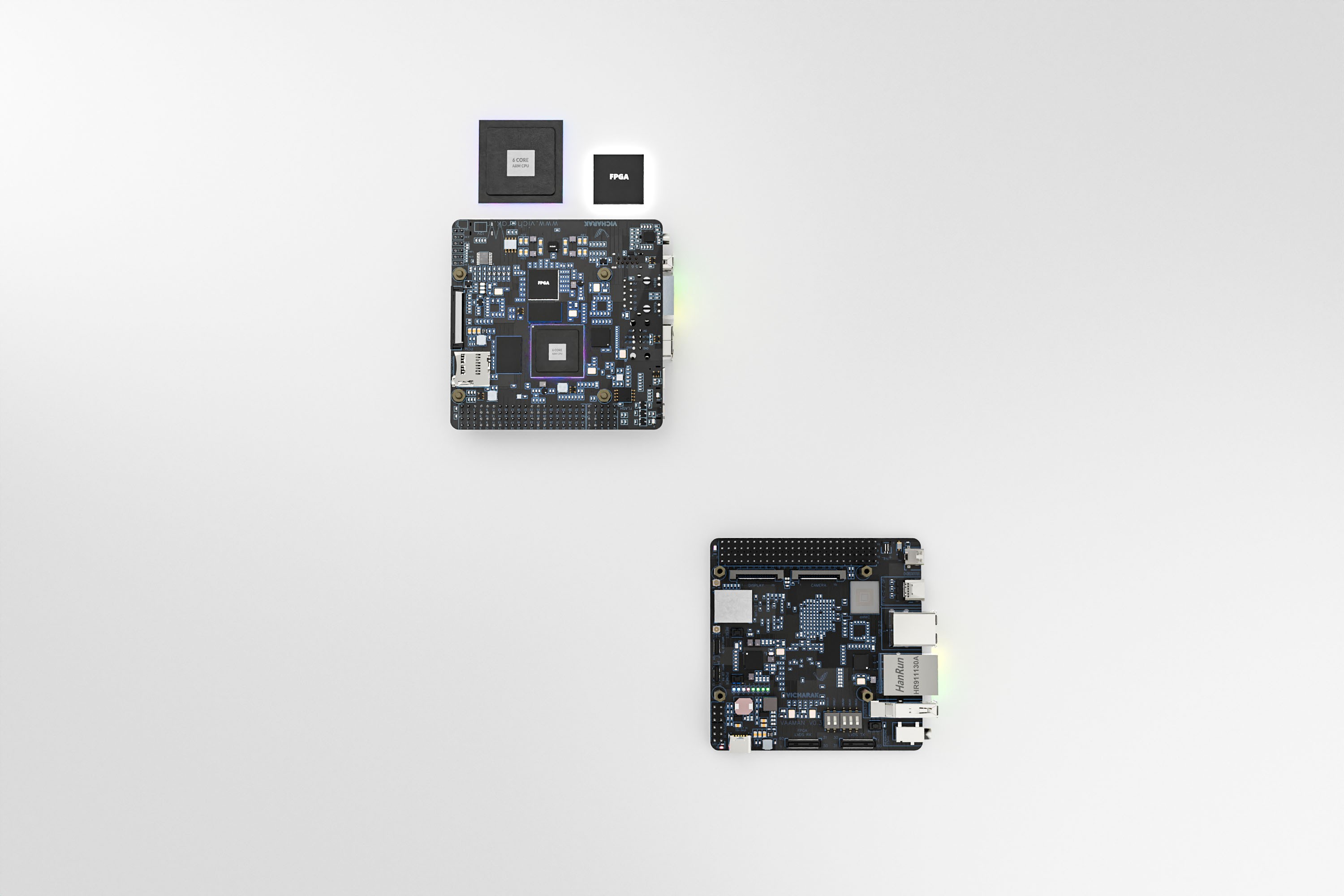

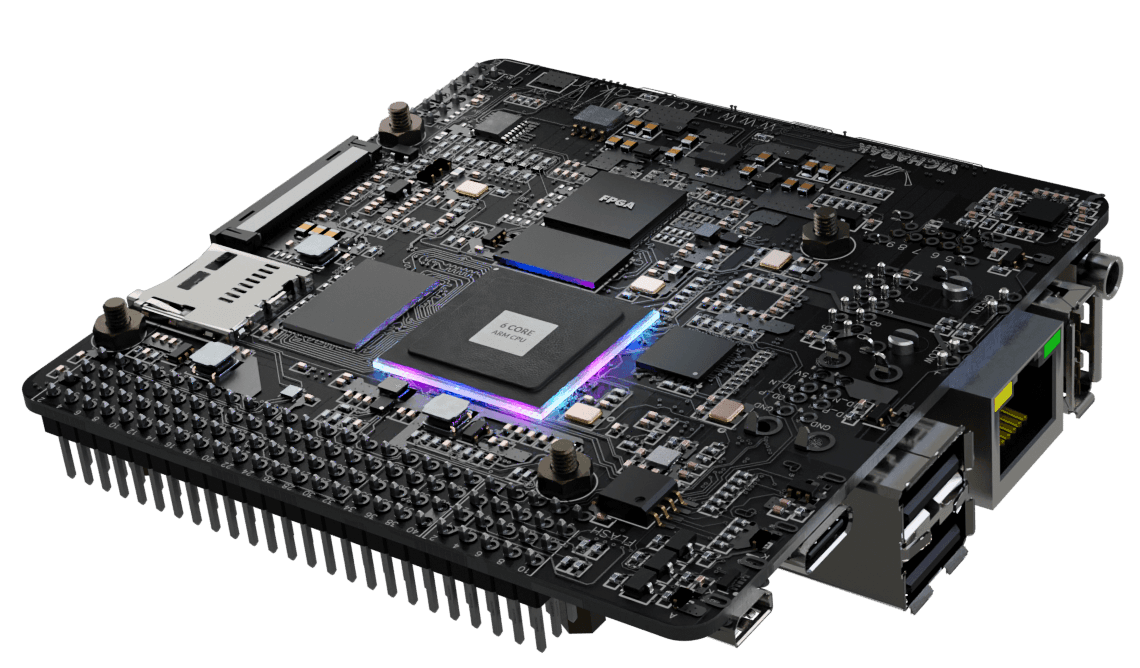

VAAMAN

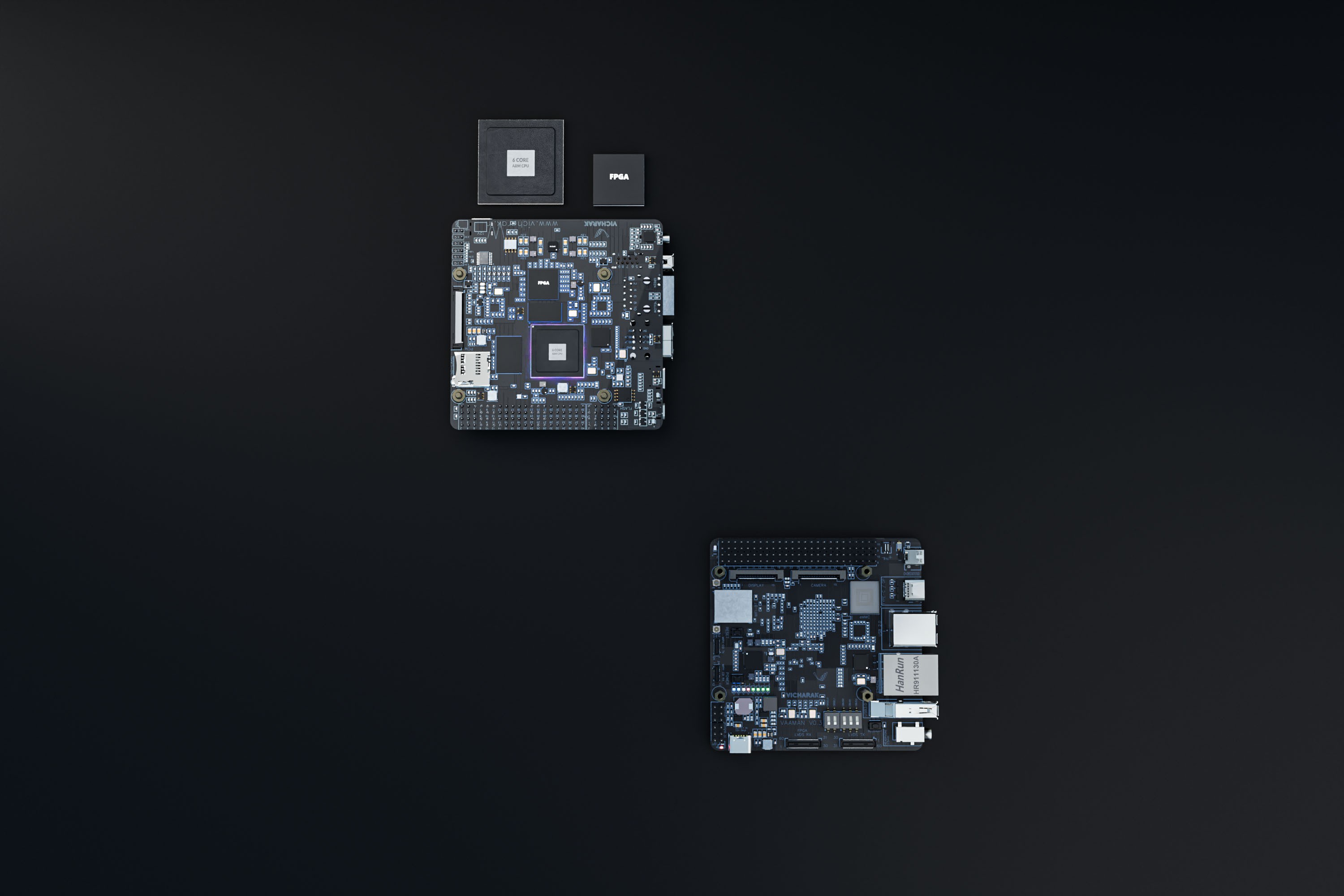

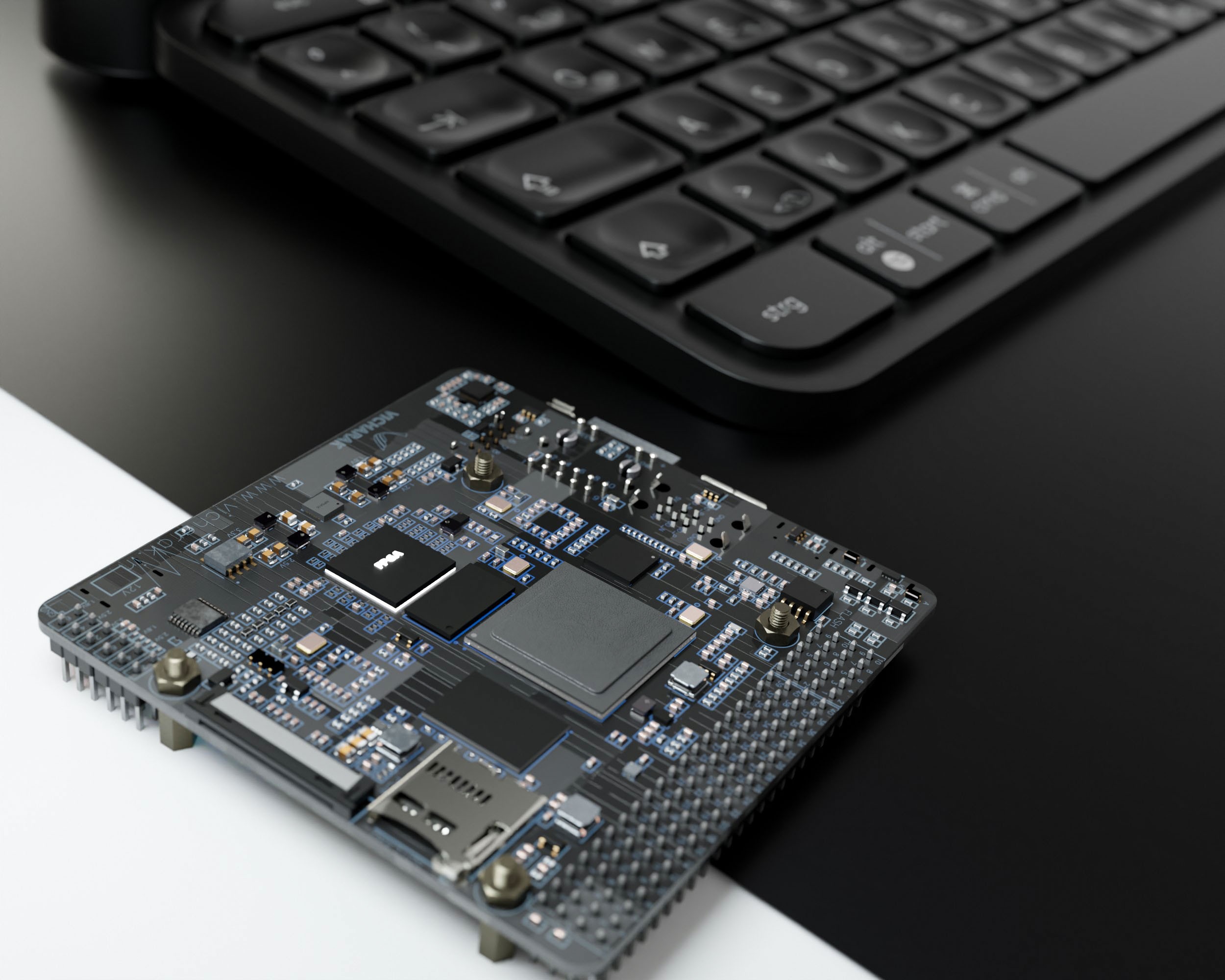

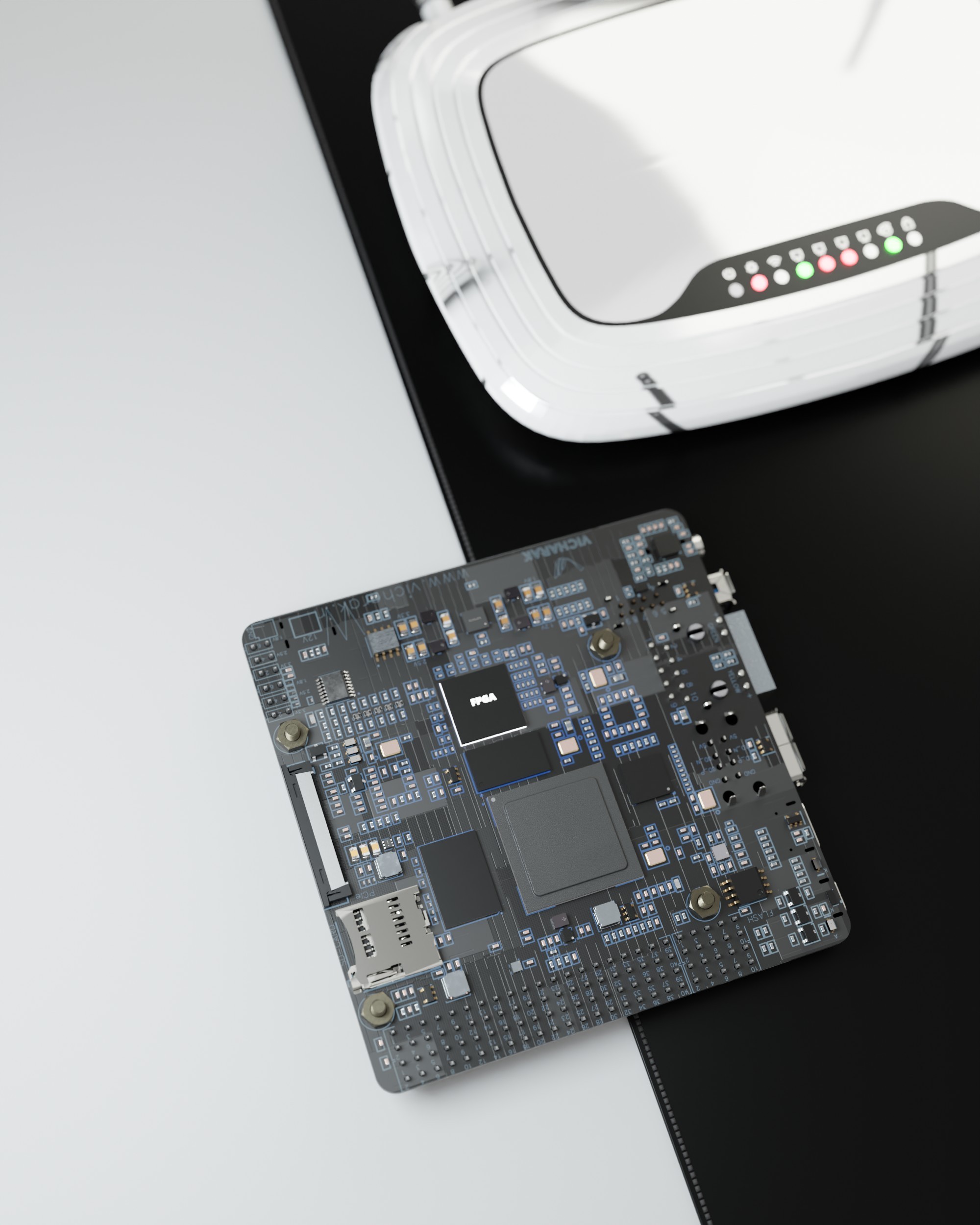

SBC With Inbuilt FPGA

VAAMAN

Subscribe here for latest VAAMAN updates!



Specifications

CPU

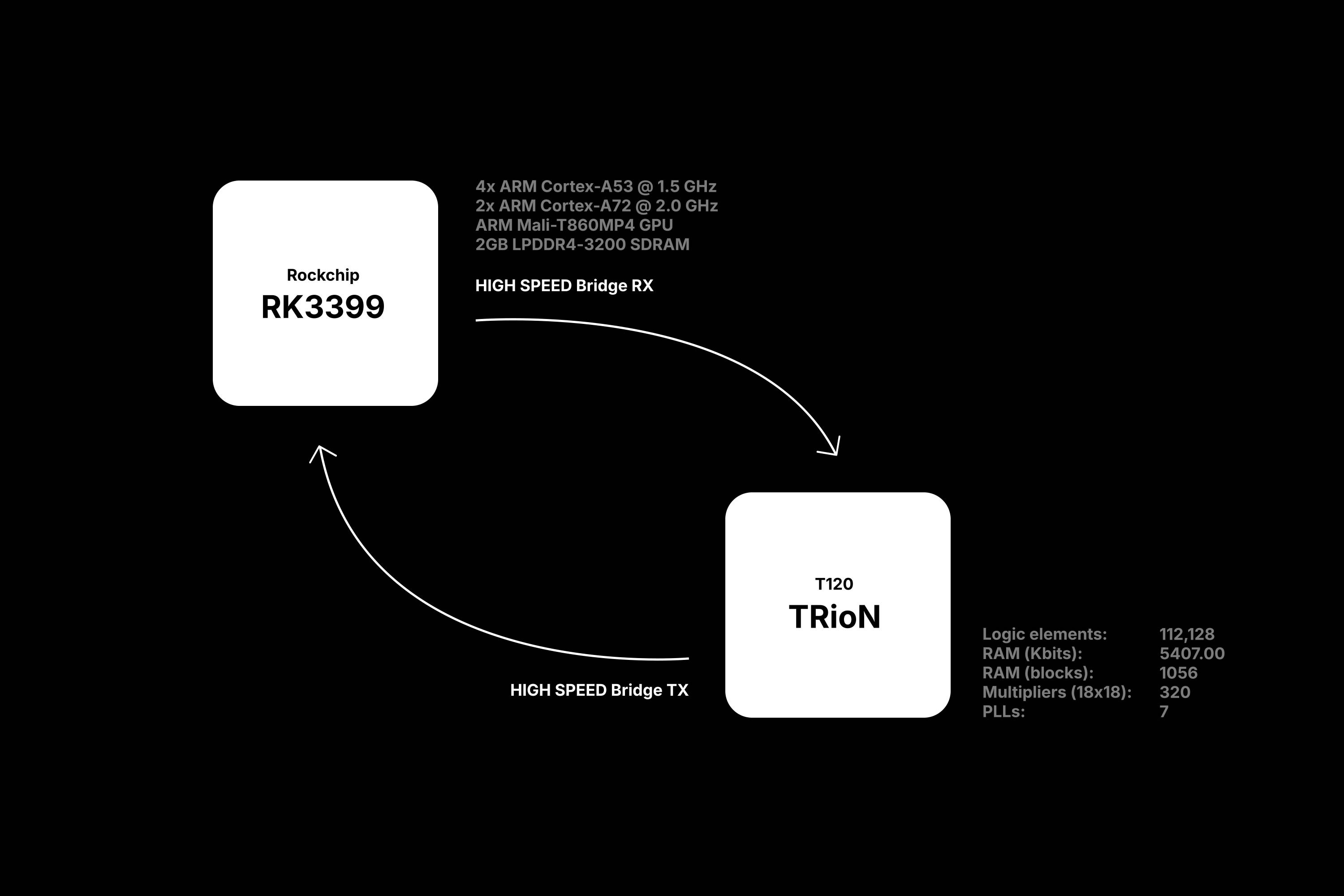

  • Dual-core Cortex- ARM A72 MPCore processor and Quad-core ARM Cortex-A53MPCore processor
  • 4x ARM Cortex-A53 @ 1.5 GHz
  • 2x ARM Cortex-A72 @ 2.0 GHz

GPU

  • ARM Mali-T860MP4 GPU, support OpenGL ES1.1/2.0/3.0, OpenCL1.2, DirectX11.1

VPU

  • Supports multi-format video decoders including H.264/H.265/VP9 up to 4Kx2K@60fps, Especially, H.264/H.265 decoders support 10bits coding, and also supports H.264/MVC/VP8 Encoders by 1080p@30fps, high-quality JPEG encoder/decoder, and special image Preprocessor and postprocessor.

MEMORY

  • 2GB LPDDR4-3200 SDRAM

STORAGE

  • 16GB/32GB/128GB High-Speed eMMC
  • MicroSD (TF) Card Slot
  • PCIE for extended SSD

Hardware Features

DISPLAY

  • 1 x HDMI 2.0 (Micro)，Support maximum 4K@60Hz display
  • 1 x MIPI, Support 2560x1600@60fps output with dual channel

AUDIO

  • 3.5mm jack with mic

ETHERNET

  • 10/100/1000Mbps Ethernet (Realtek RTL8211E)

CAMERA

  • MIPI CSI 2 lanes via FPC connector, support up to 800MP camera

WIRELESS

  • Integrated WiFi Combo Module (6222B-SRC)
  • WiFi 2.4G+5G WiFi 2T2R
  • BT5.0

PCIe

  • PCIe Interface via FPC connector

USB

  • 2 x USB2.0 HOST，1 x USB3.0，1 x USB3.0 Type-C

RTC

  • Support RTC, on-board backup battery interface

IO

  • 1 x UART
  • 2 x SPI bus
  • 2 x I2C bus
  • 1 x PCM/I2S
  • 1 x SPDIF
  • 1 x PWM
  • 1 x ADC
  • 6 x GPIO
  • 2 x 5V DC
  • 2 x 3.3V power pin

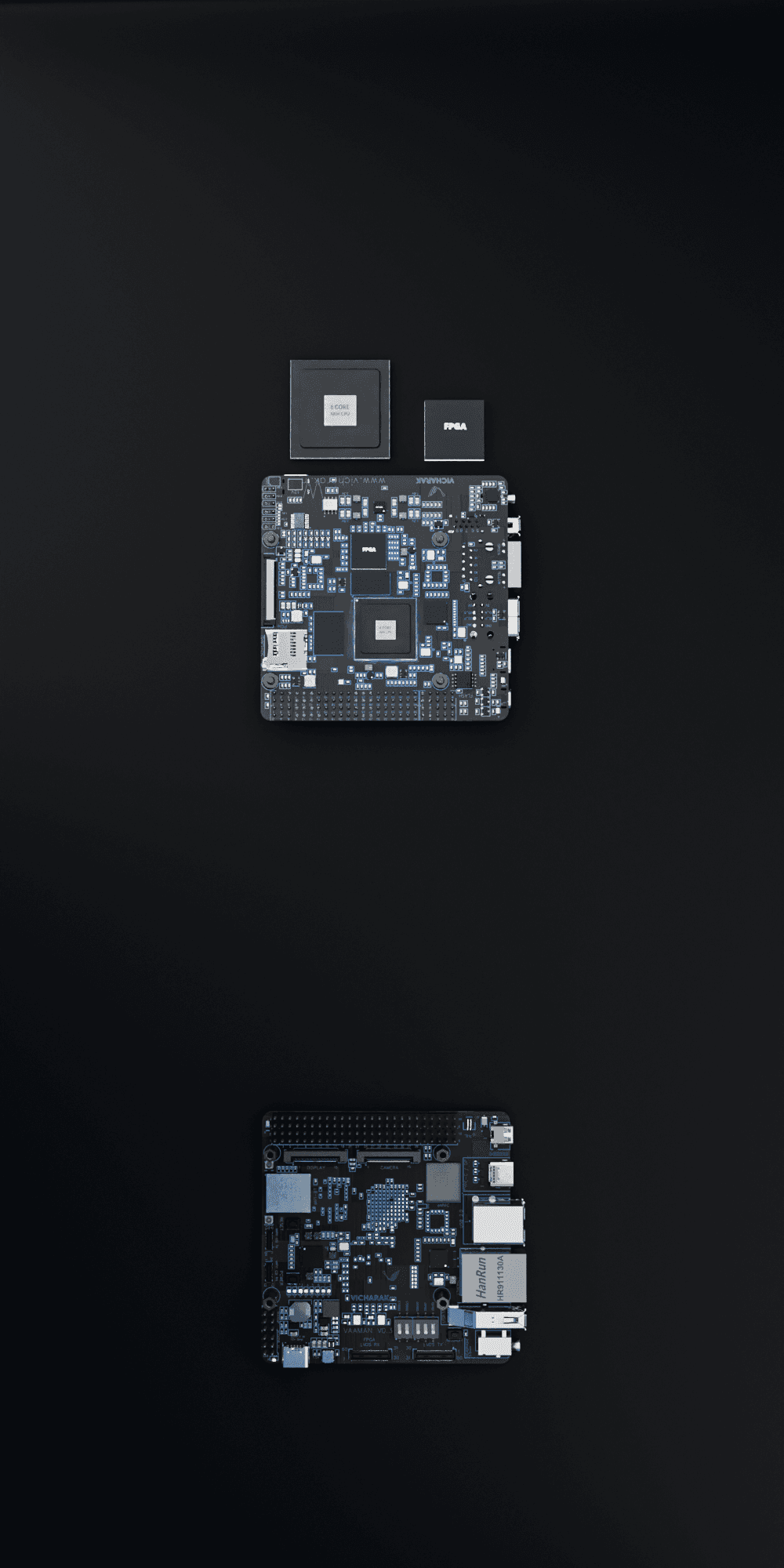

FPGA Features

  • LVDS Transmitter interface connector that supports 20 Lanes.
  • LVDS Receiver interface connector that supports 20 Lanes.
  • LPDDR3 256Mbits x 16 bits memory
  • MIPI-CSI RX connector with 4 data lanes and 1 clock lane.
  • MIPI-CSI TX connector with 4 data lanes and 1 clock lane.
  • JTAG headers for configuration.
  • 40-pin GPIO header supported with 1 PMOD and 2 LVDS lane.
  • Five different oscillators.
