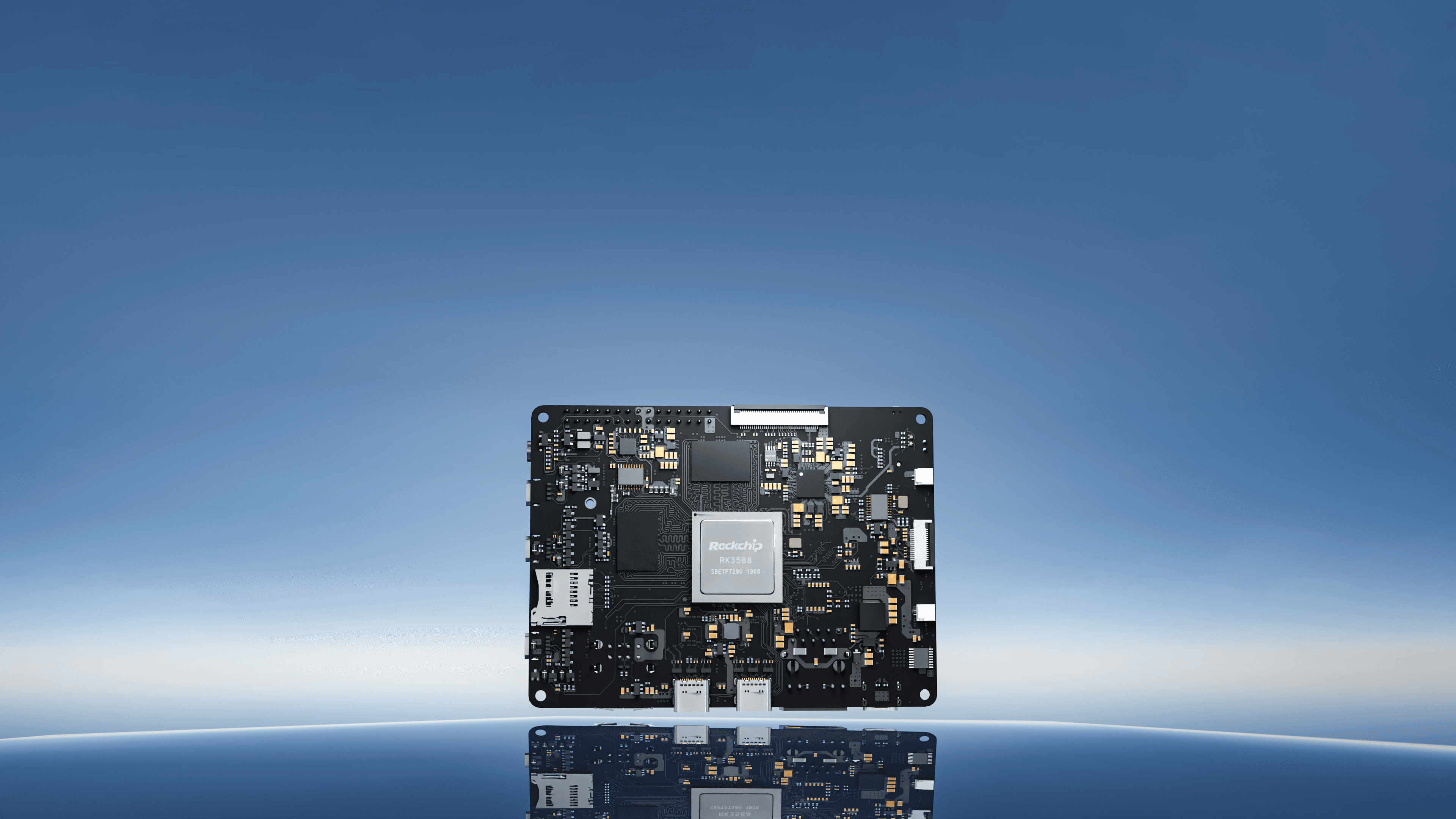

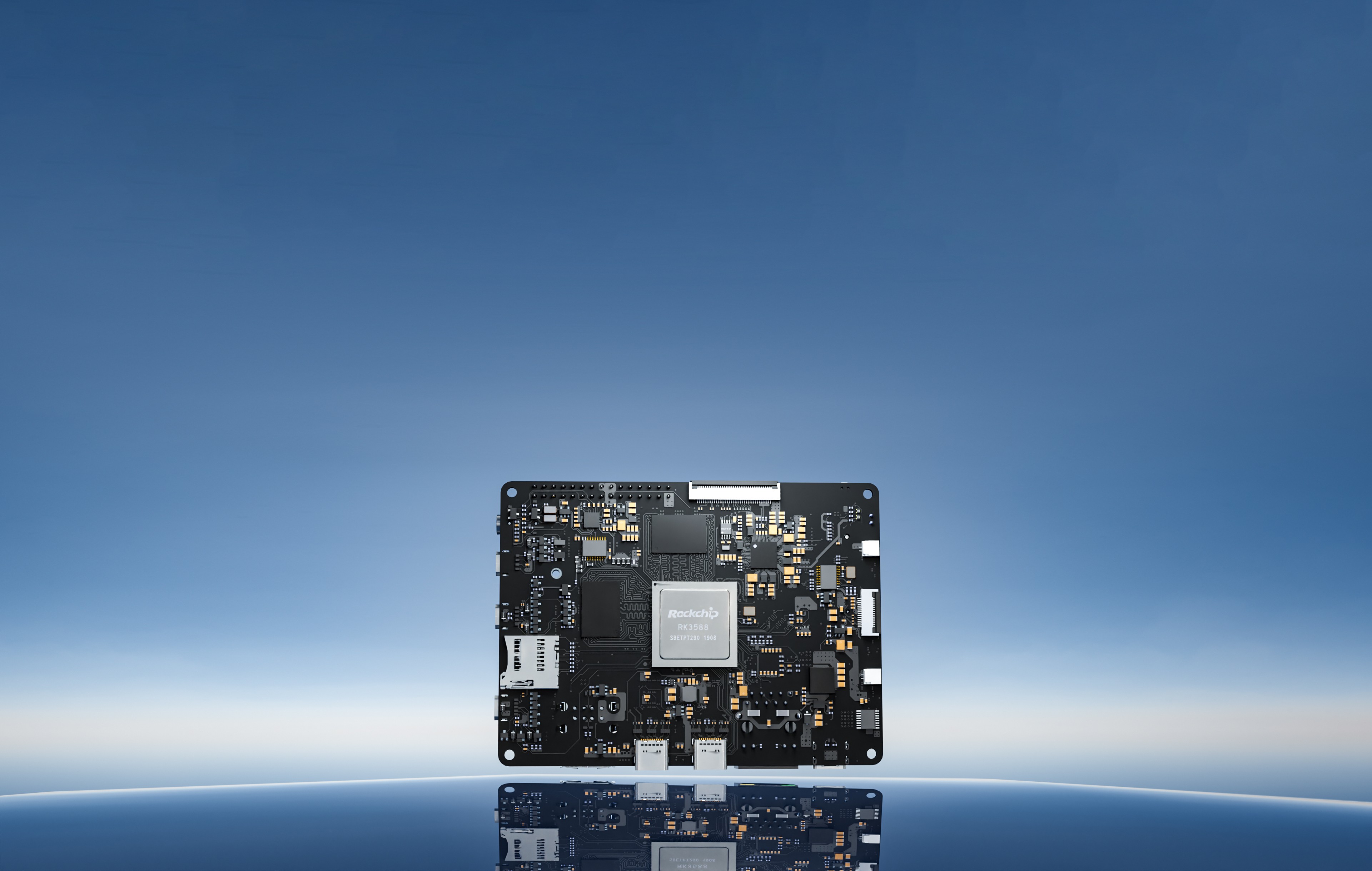

Rockchip RK3588
Axon Technical Specification
Extreme GPU Performance
The RK3588 has an integrated 4-core GPU, the ARM Mali-G610 MP4 (up to 1GHz clock speed) which supports a lag-free 4K user interface. 3D rendering has been greatly improved and you can play expansive open-world online games, console games and even some AAA titles
High Performance NPU
The RK3588 has a built-in NPU which provides up to 6 TOPS (tera operations per second) of neural network processing. The NPU supports mainstream deep learning frameworks, such as TensorFlow, Pytorch, MxNET and so on. The powerful RK3588S brings optimized neural network performance to various A.I. applications.
Quad Display Interfaces
2 HDMI, 1 USB-C dp, 1 DSI
Axon’s hardware supports up to four independent displays. This greatly expands the potential applications of Axon in multi-display scenarios such as digital signage, development and gaming.

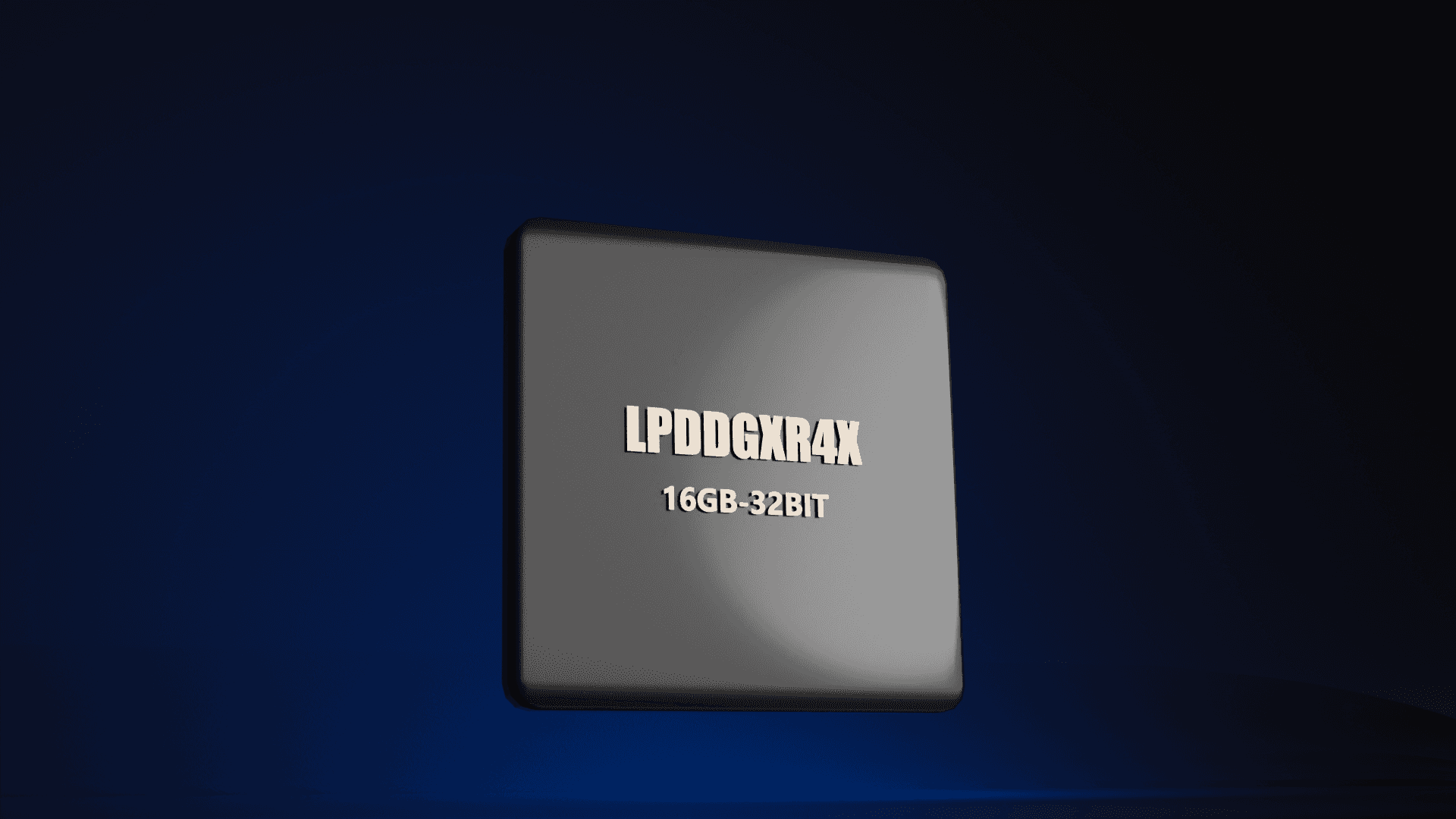

Large RAM Capacity
The Axon supports up to 16GB of RAM! Run multiple applications simultaneously while still having a smooth and lag-free experience.
Basic: 8GB 64-bit 2112MHz LPDDR4X + 16GB 64-bit 2112MHz LPDDR4X + 64GB eMMC 5.1
8K Decoding & Encoding
Powerful video encoding and decoding capabilities enable Axon to output beautifully crisp and clear 8K HD resolution. This will greatly expand the potential applications of Axon in multi-display environments such as digital signage, entertainment and gaming.
Decoding: x1 8K@60fps / x32 1080P@60fps channels (H.265/VP9) Encoding: x1 8K@30fps / x16 1080P@30fps channels (H.265/H.264)
High Speed Wireless
Axon integrates the FN-Link (FG6252BSRB-03) module, which is capable of high-speed wireless data transmission. This module supports IEEE 802.11 b/n/g/a/ac/ax and 2T2R for greater bandwidth. This advanced wireless transceiver module makes data transmission stable and fast. Bluetooth 5.0 is supported as well.
Download(Mbits/s)
369
380
800
Upload(Mbits/s)
278
323
500

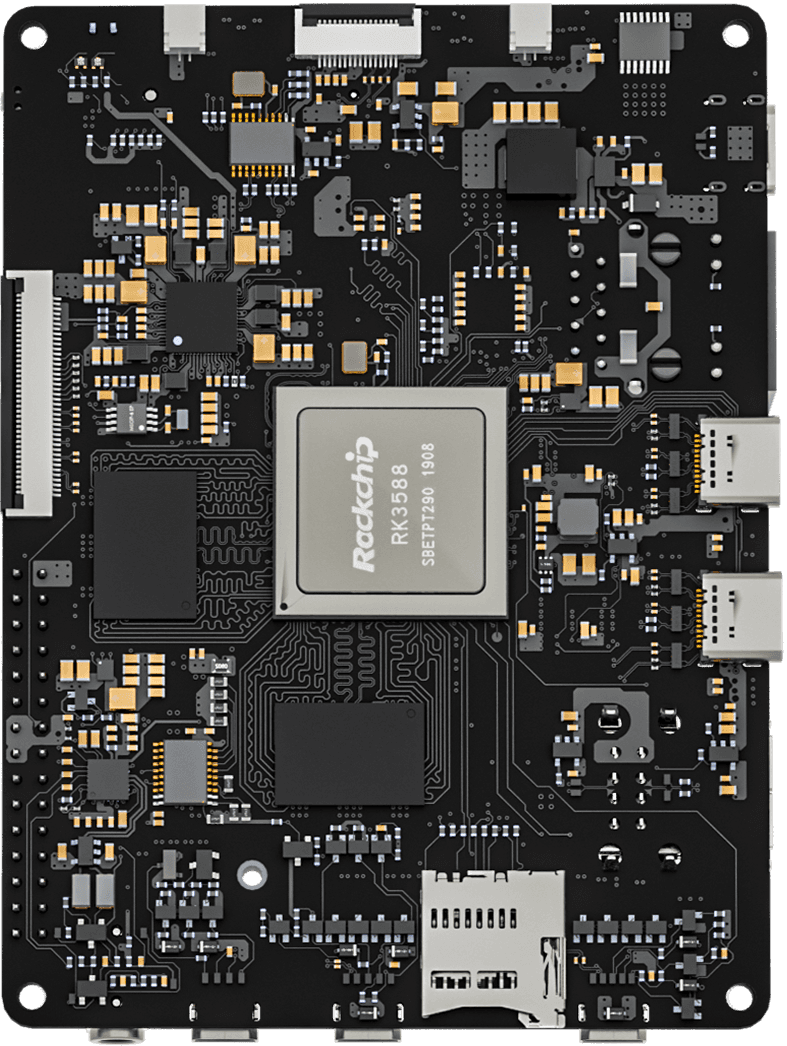

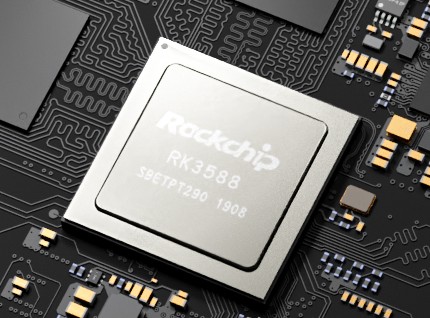

RK3588 a new generation of high-end processor
RK3588 is Rockchip's new-gen flagship AIoT SoC with 8nm lithography process. Equipped with 8-core 64-bit CPU, it has frequency up to 2.4GHz. Integrated with ARM Mali-G610 MP4 quad-core GPU and built-in AI accelerator NPU, it provides 6Tops computing power and supports mainstream deep learning frameworks. The powerful RK3588S can deliver more optimized performance in various AI application scenarios.
CPU 8-Core A76+A55, Frequency 2.4GHz
RK3588
4times improved
RK3399
CPU Quad-Core Mali-G610
RK3588
8times improved
RK3399
Super-large 32GB RAM
Up to 32GB of super-large RAM can be configured, which exceeds the limit of the previous RAM and delivers a faster response speed. It can meet the application requirements of products with large RAM and large storage.
Supports INT4/INT8/INT16 mixed operation; supports frameworks such as TensorFlow/ MXNet/ PyTorch / Caffe
NPU
6Tops Computing Power
Strong network communication capability
On-board 1000Mbps RJ45 Ethernet, 2.4GHz/5GHz dual-band WiFi 6 and Bluetooth 5.2 are supported. This powerful network communication capability makes data transmission more stable and faster.
WiFi 6
Bluetooth 5.2
1000 Mbps Ethernet
Octa Core Processor
AXON is equipped with an 8-core 64-bit CPU (up to 2.25GHz clock speed). x4 2.25GHz Cortex-A76 performance cores are paired with x4 1.8GHz Cortex-A55 efficiency cores.

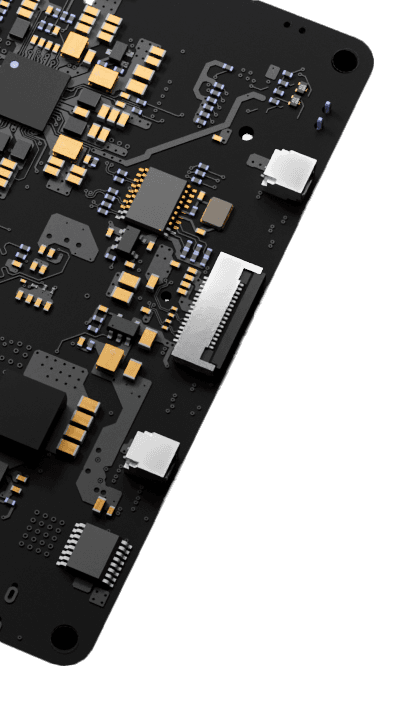

Maker Friendly

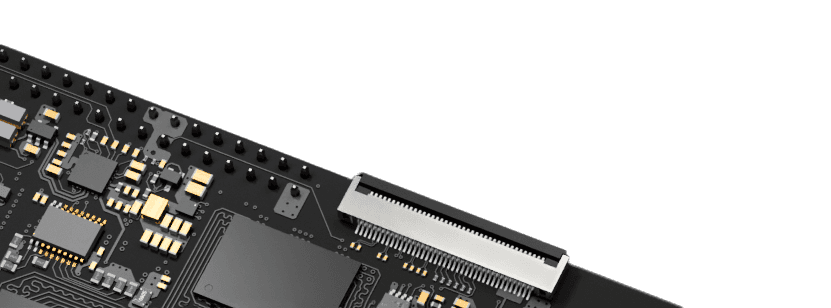

Axon is an ultraslim, credit-card sized ARM PC that is designed with Pogo Pads, FPC connector and MIPI-Interfaces which makes it convenient for Programmers and Developers to access the necessary I/O. The beautifully designed polycarbonate shell increases electrostatic resistance which means Makers will have a stable and predictable PCBA upon which to build their projects.
Multi OS Support

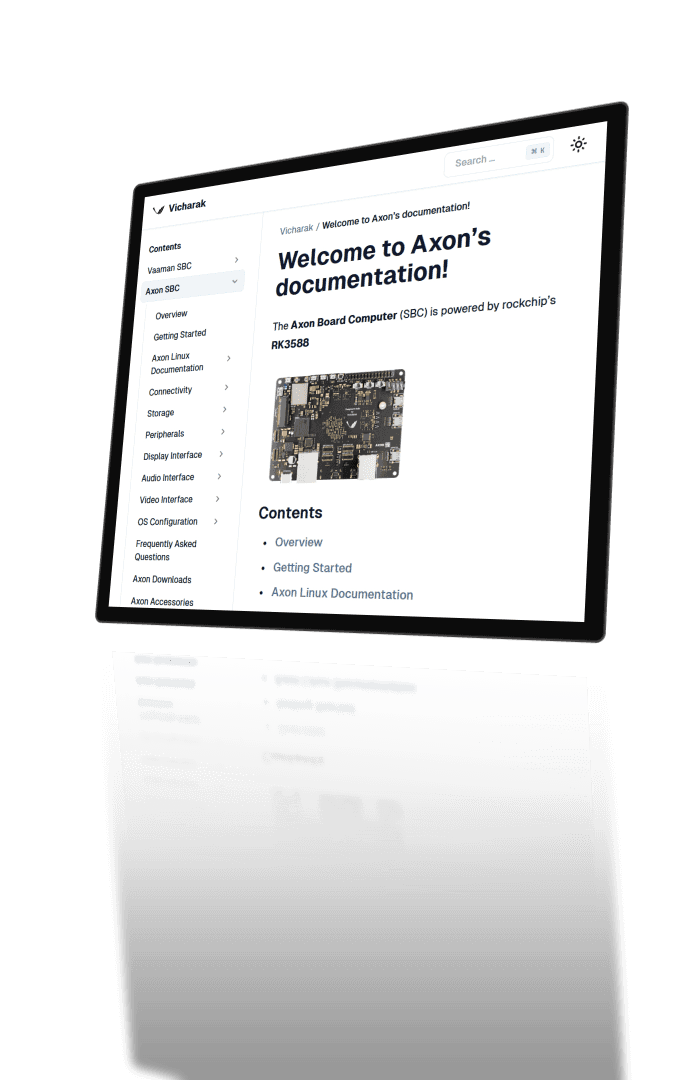

Axon supports a wide range of popular open source operating systems, such as Ubuntu and Android. It provides a reliable and stable software environment for product development and production. Software developers in partnership with Axon, will release more customised operating systems for the Axon in the coming months.
Versatile Applications
Axon supports a wide range of potential applications, which include but are not limited to: edge Computing, artificial intelligence, cloud computing, VR/AR, blockchain, smart security, smart home, intelligent retail and smart industry.
Technical Specs
SOC
RockChip RK3588
CPU
8-core 64-bit (4×Cortex-A76+4×Cortex-A55)
8nm lithography process
frequency up to 2.4GHz
GPU
ARM Mali-G610 MP4 quad-core GPU
Support OpenGL ES3.2/ OpenCL 2.2 / Vulkan1.1
450 GFLOPS
NPU
NPU computing power up to 6 TOPS
Support INT4/INT8/INT16 mixed operation
Support framework switching of TensorFlow / MXNet / PyTorch / Caffe
ISP
Integrated 48MP ISP with HDR&3DNR
VPU
Video decoding:
8K@60fps H.265/VP9/AVS2
8K@30fps H.264 AVC/MVC
4K@60fps AV1
1080P@60fps MPEG-2/-1/VC-1/VP8
Video encoding:
8K@30fps encoding
support H.265 / H.264
*Achieve up to 32-channel 1080P@30fps decoding
16-channel 1080P@30fps encoding
RAM
4GB/8GB/16GB
64bit
LPDDR4x
LPDDR5 (Up to 32GB optional)

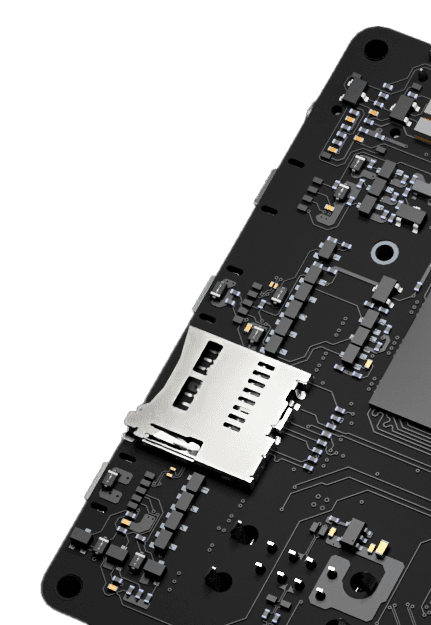

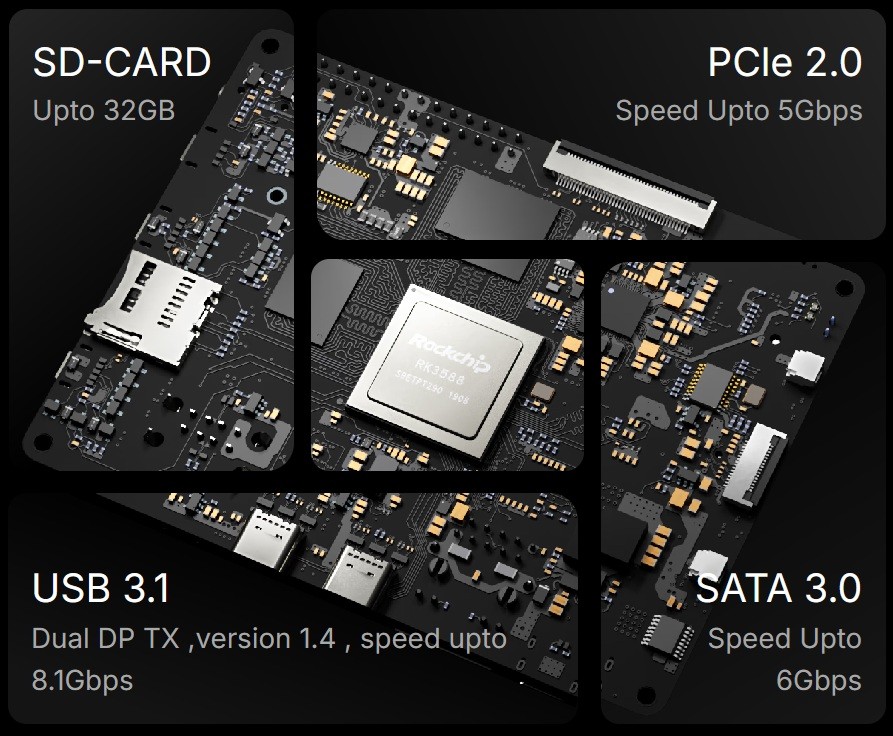

Storage
SD Card 32GB
64bit
128GB eMMC
Storage Expansion
1 x M.2 interface
can be expanded with 2242 SATA3.0 SSD (default)
SATA from FPC connector
compatible with 2242 PCIe2.0 NVMe SSD1 × TF Card
Wireless
Support 2.4GHz
5GHz dual-band WiFi6
802.11 a/b/g/n/ac protocol
Support Bluetooth 5.2 (BLE)
Display
2 × HDMI2.1（8K@60fps or 4K@120fps）
2 × MIPI-DSI（4K@60fps）
2 × DP1.4（8K@30fps）
2 × Type-C DP
Ethernet
1 × 1000Mbps Ethernet (RJ45)
Camera
2 × 2 lane MIPI-CSI input or 1×4 lane MIPI-CSI

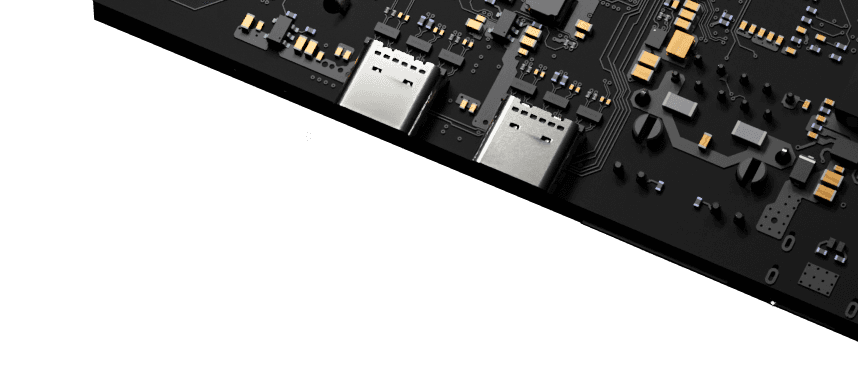

USB
2 × USB3.0 (Form Type-C)
2 × USB2.0
PCIE
1 × M.2 (PCIe3.0)
1 × FPC Connector(PCIe2.0)
Audio
Audio output:
2 × Analog speaker
2 × HDMI2.1 audio output
2 × DP1.4 audio output
Audio input:
1 × Mic input（2P-1.25mm）
