Edge Intelligence — Redefined

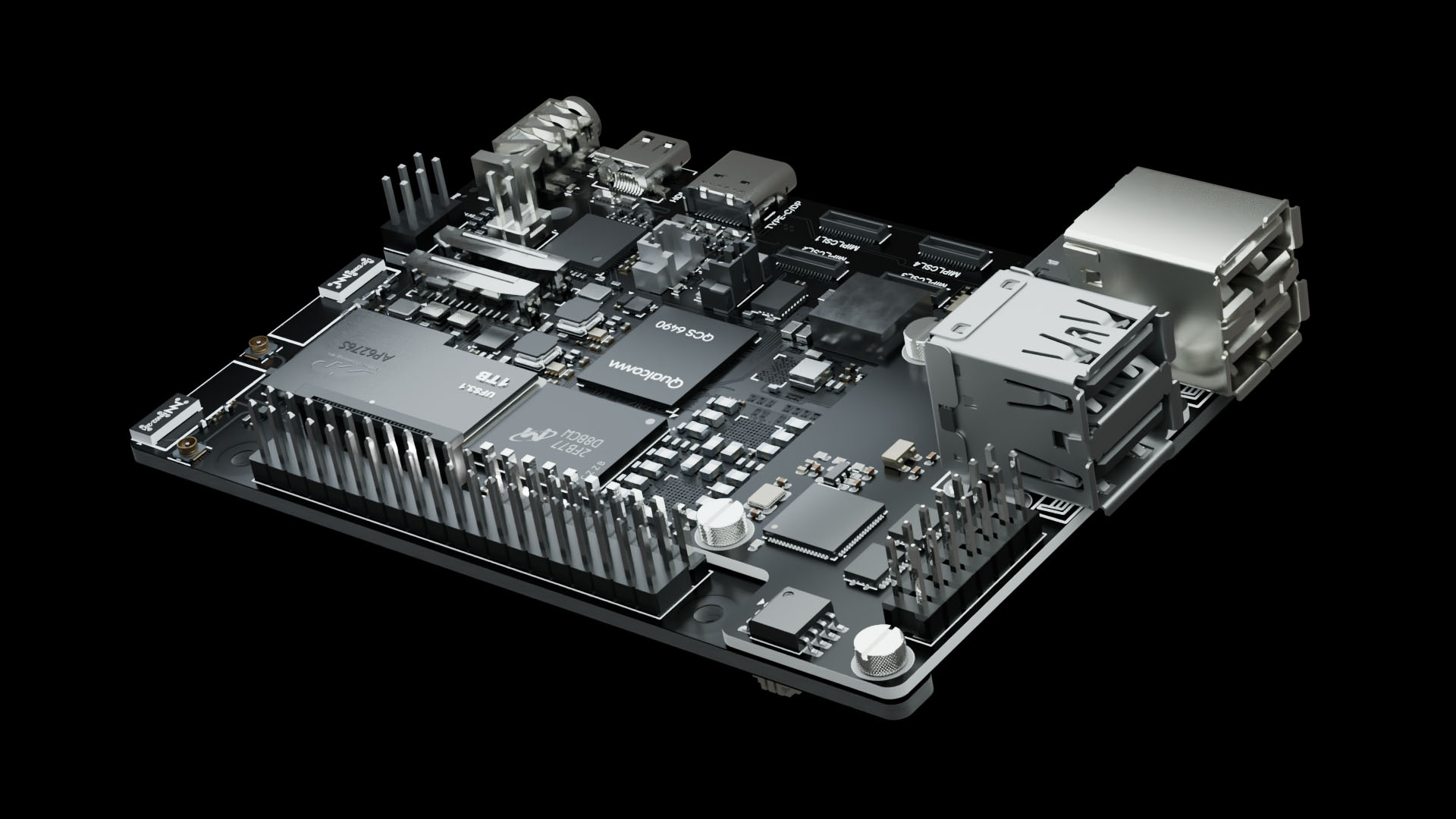

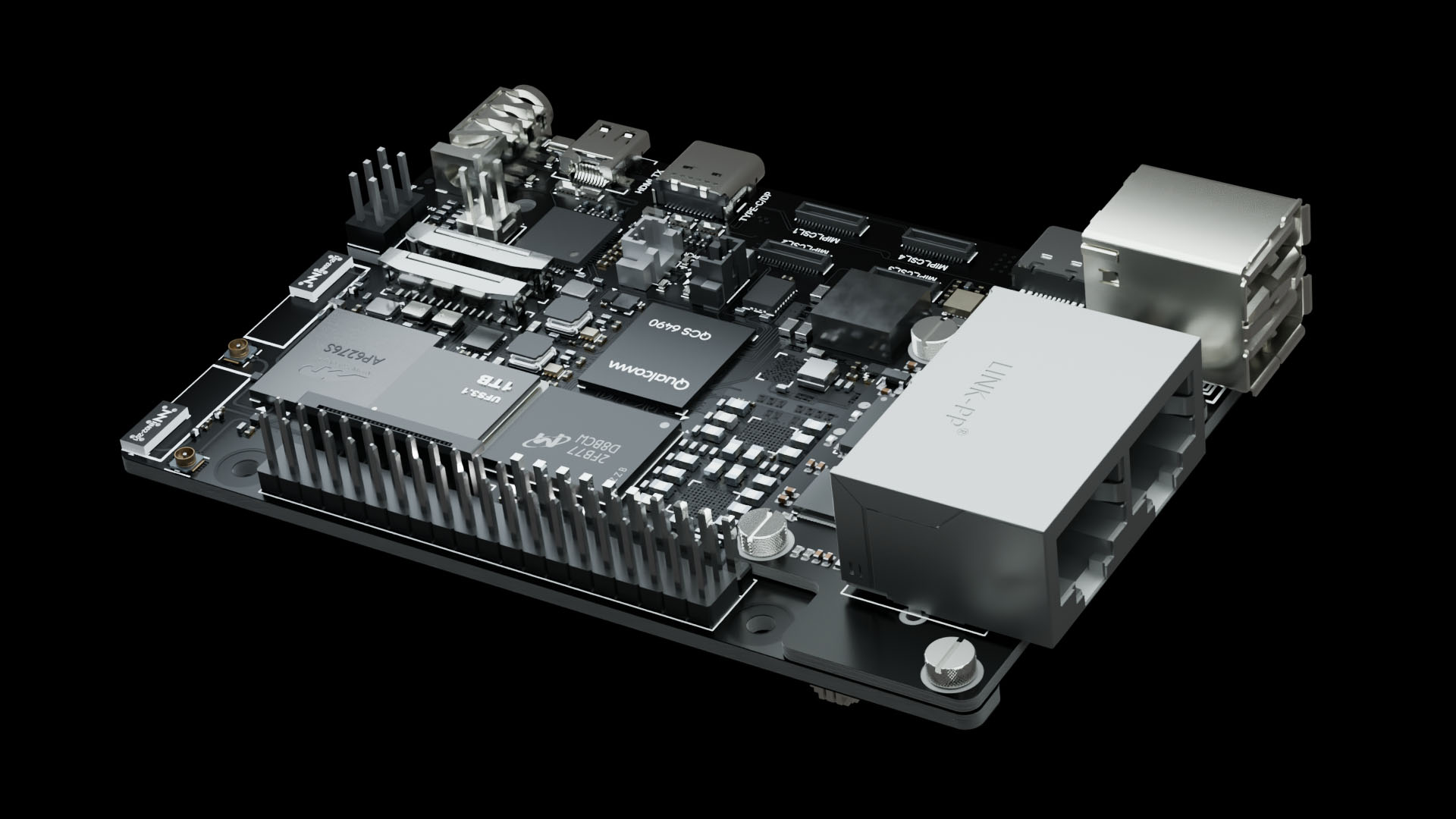

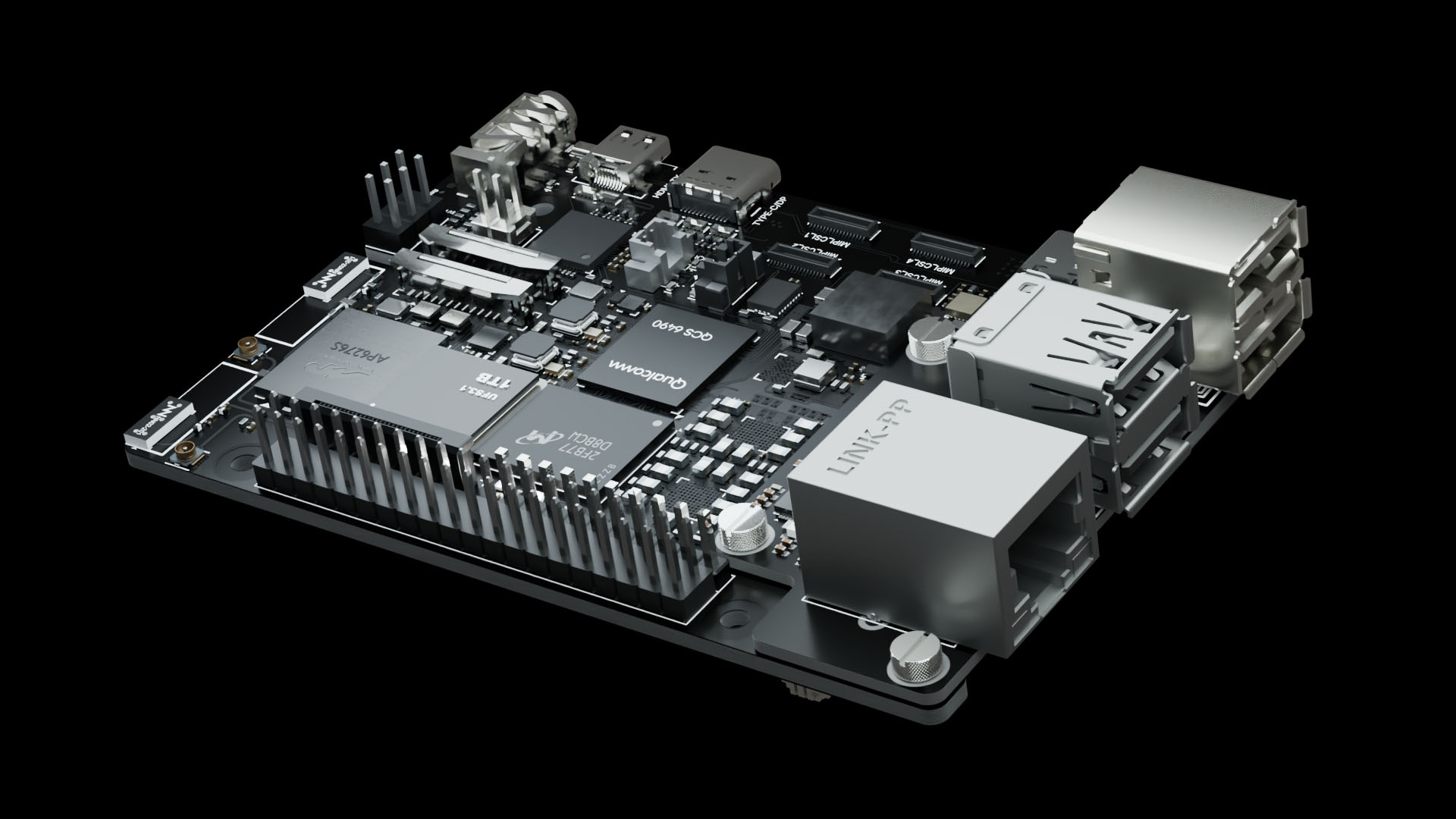

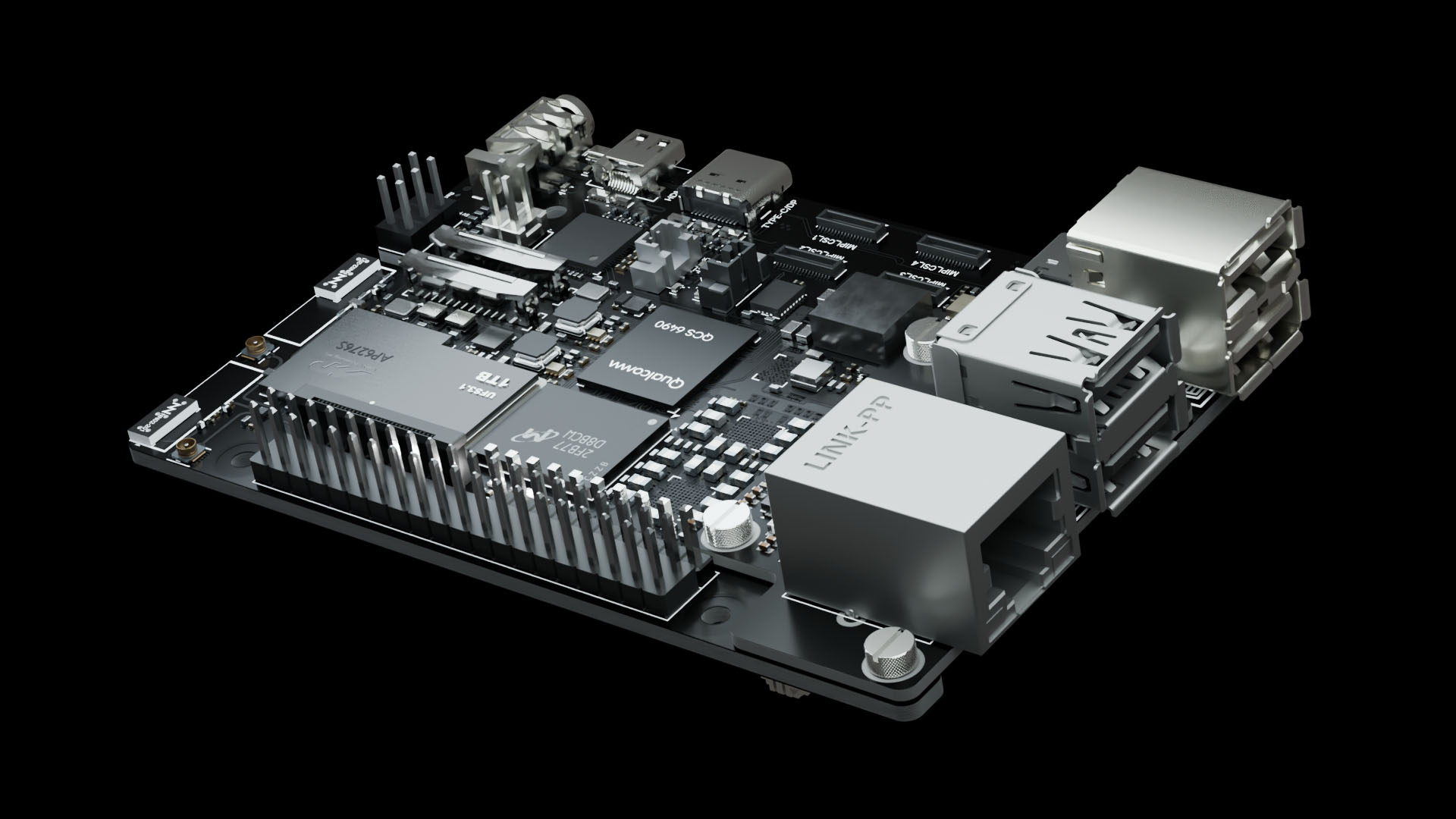

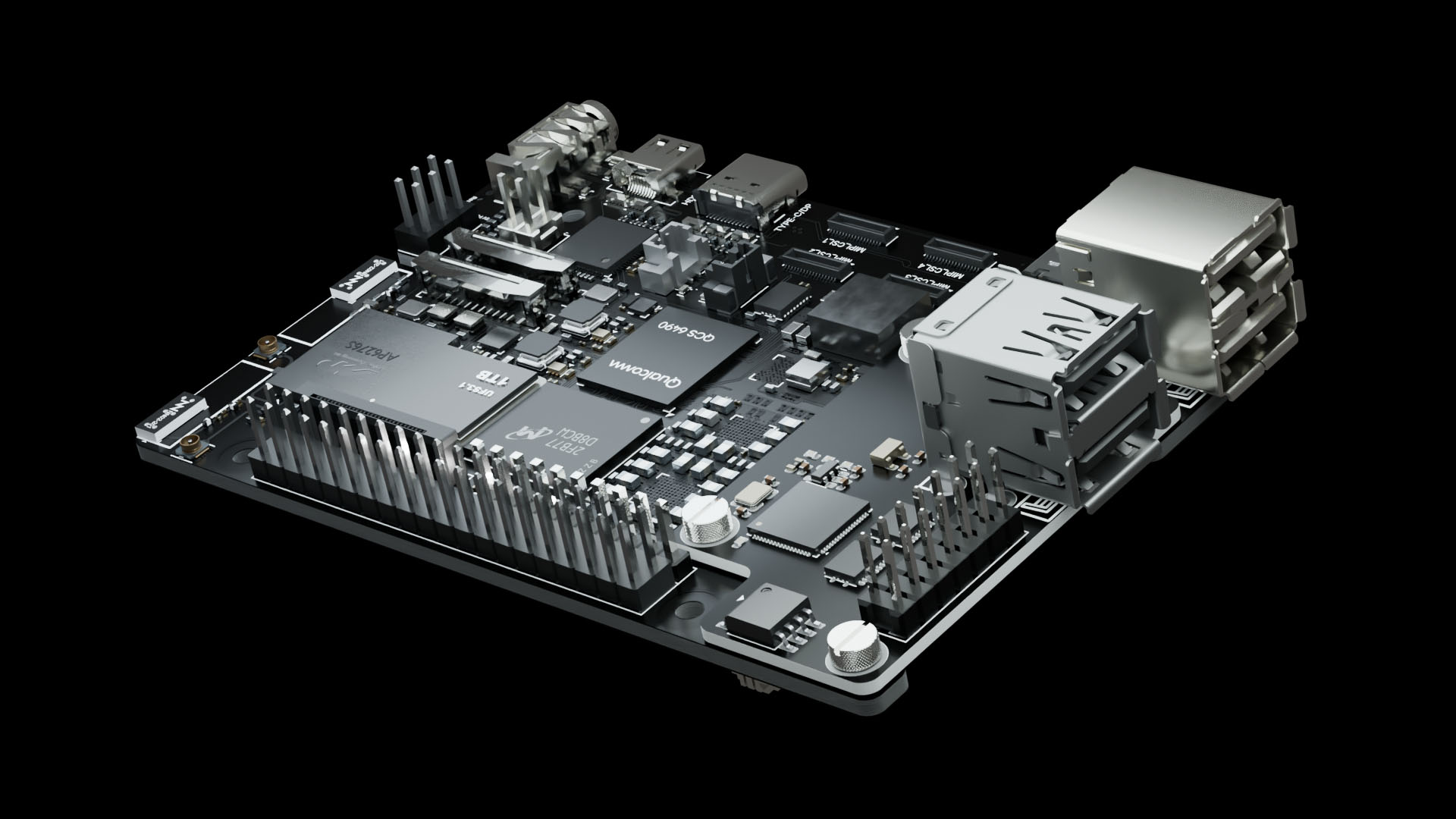

AXON-MINI

Compact intelligence for the next generation of edge devices.

See Specs

Coming Soon

Edge Intelligence — Redefined

AXON-MINI

Compact intelligence for the next generation of edge devices.

See Specs

Coming Soon

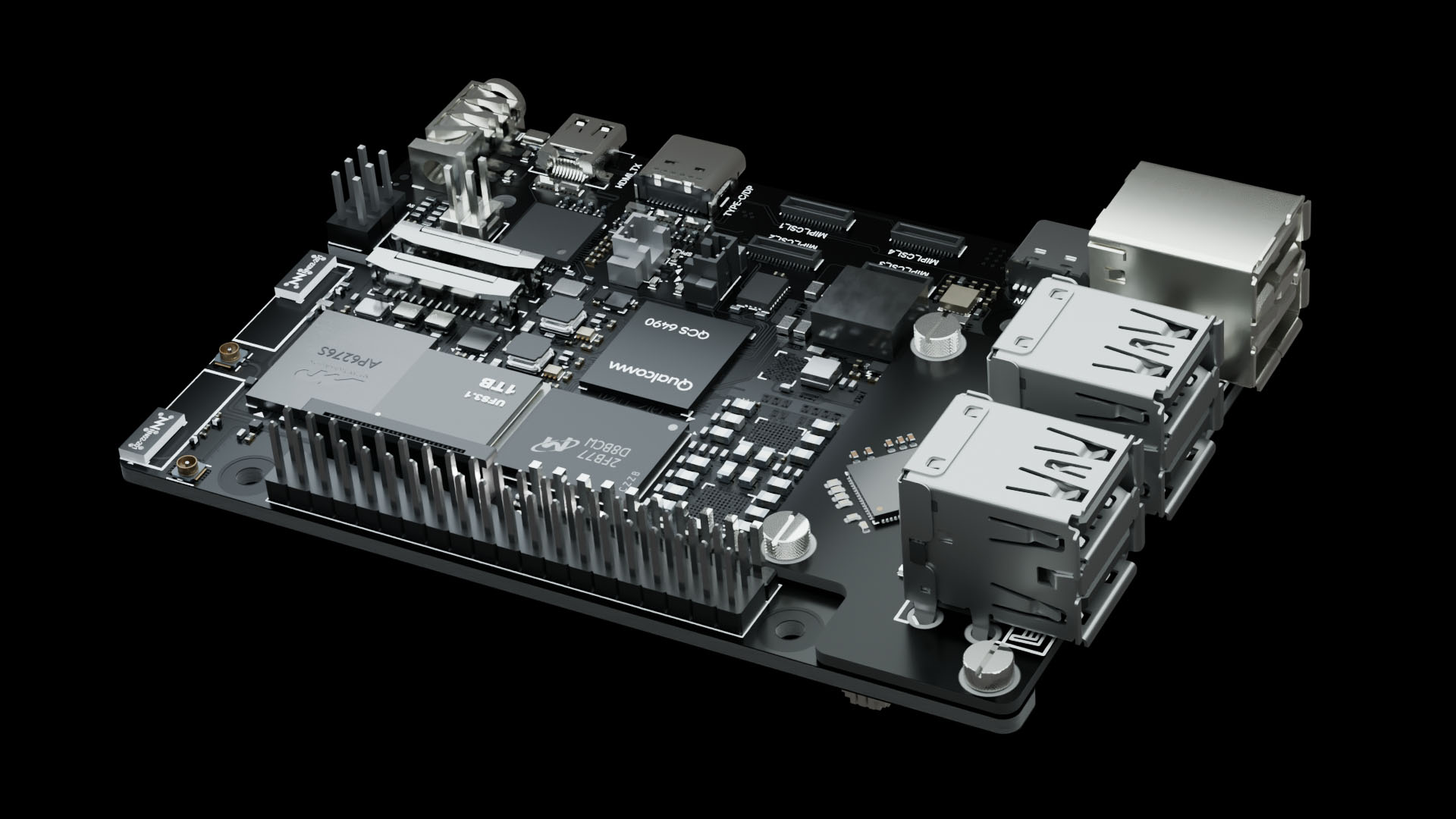

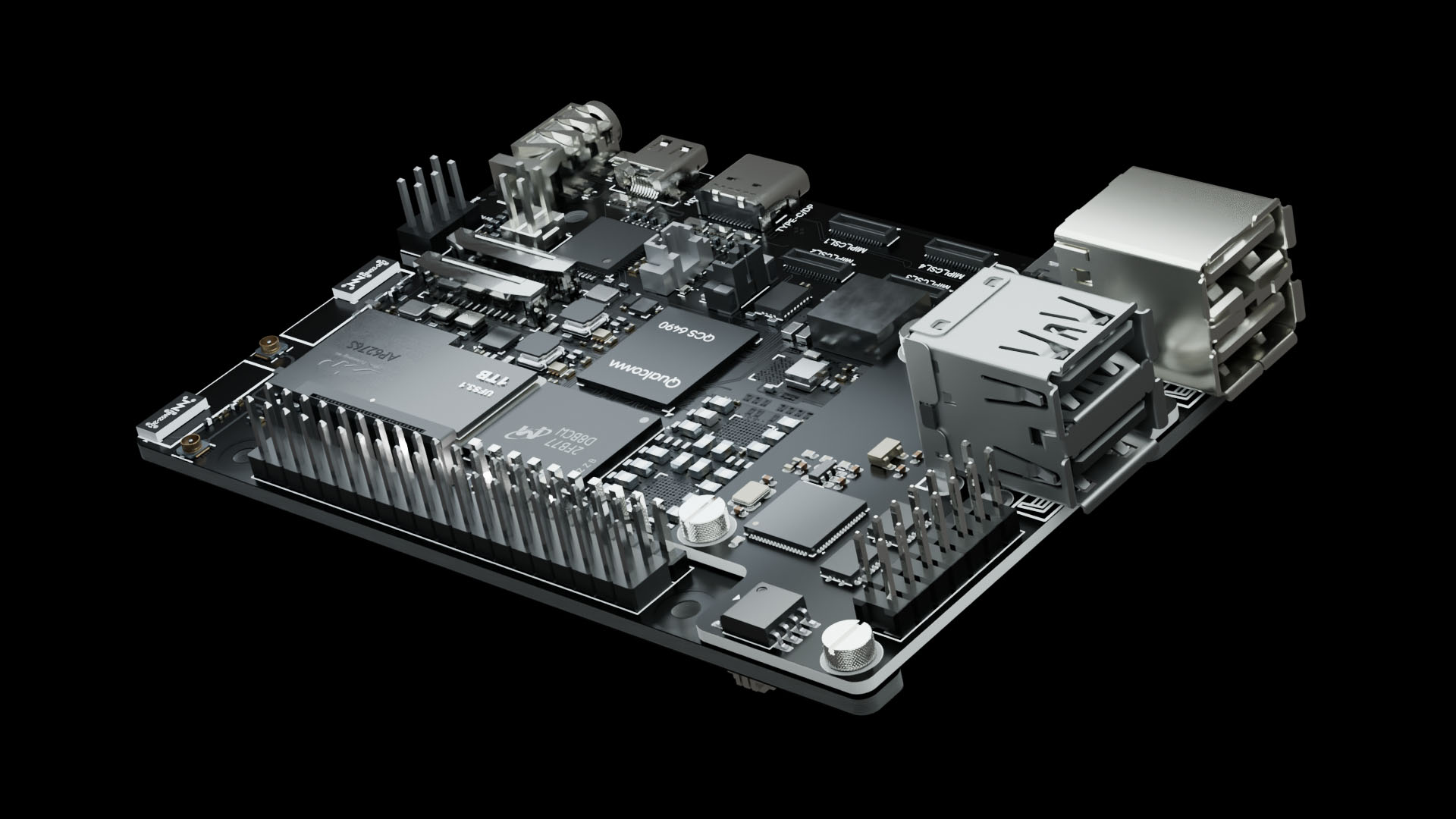

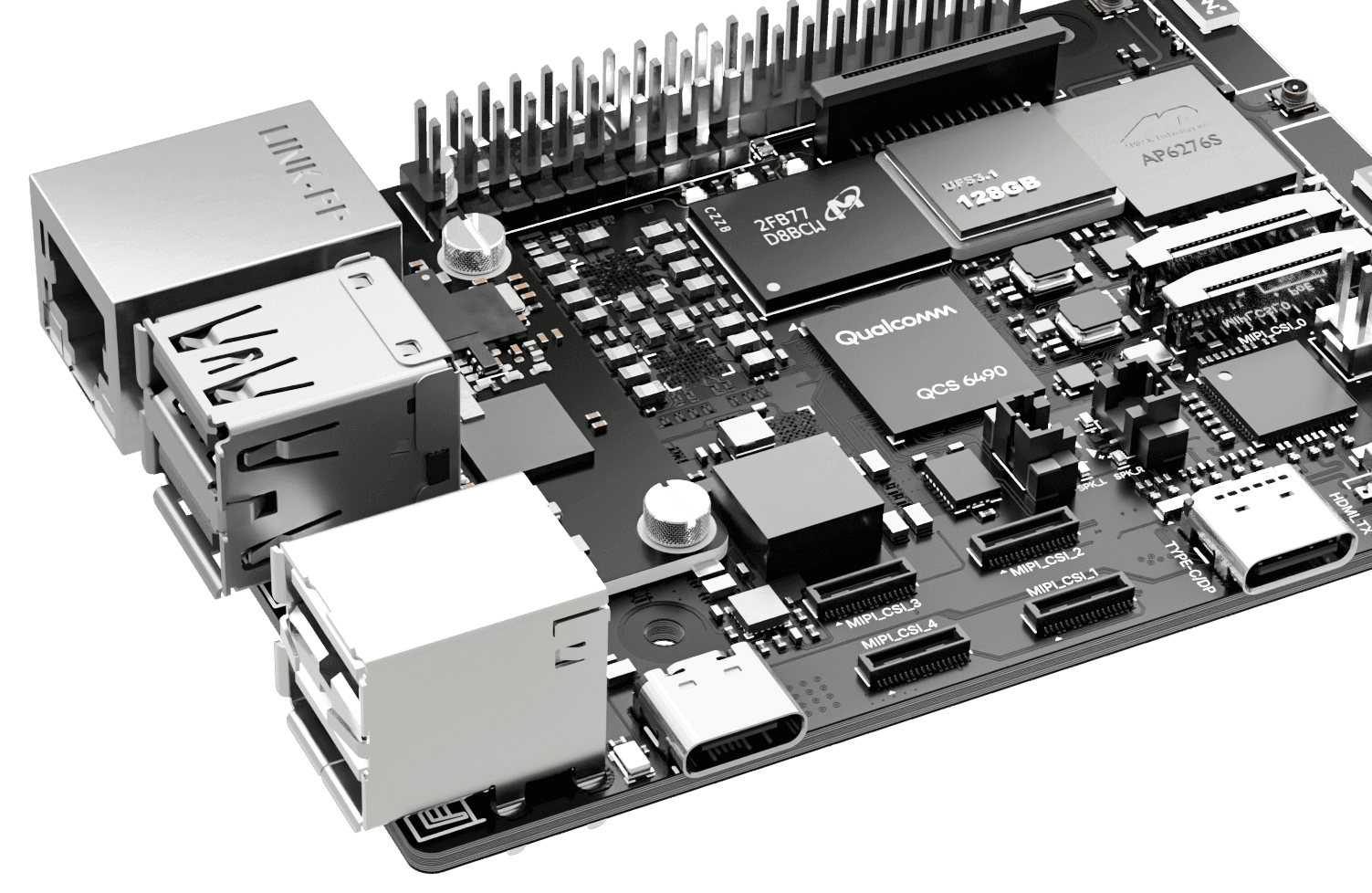

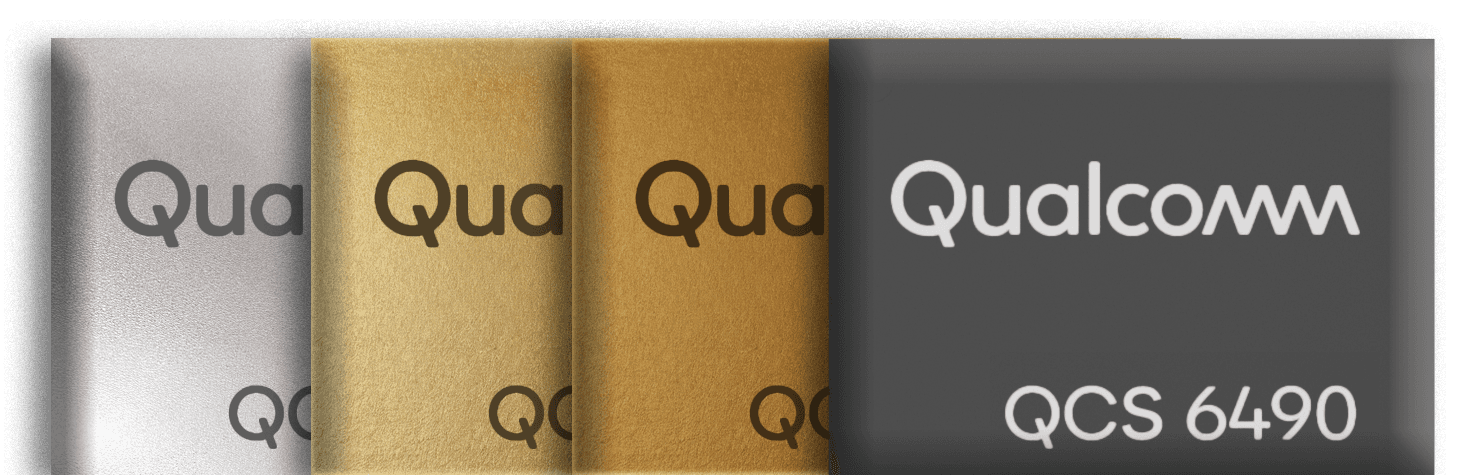

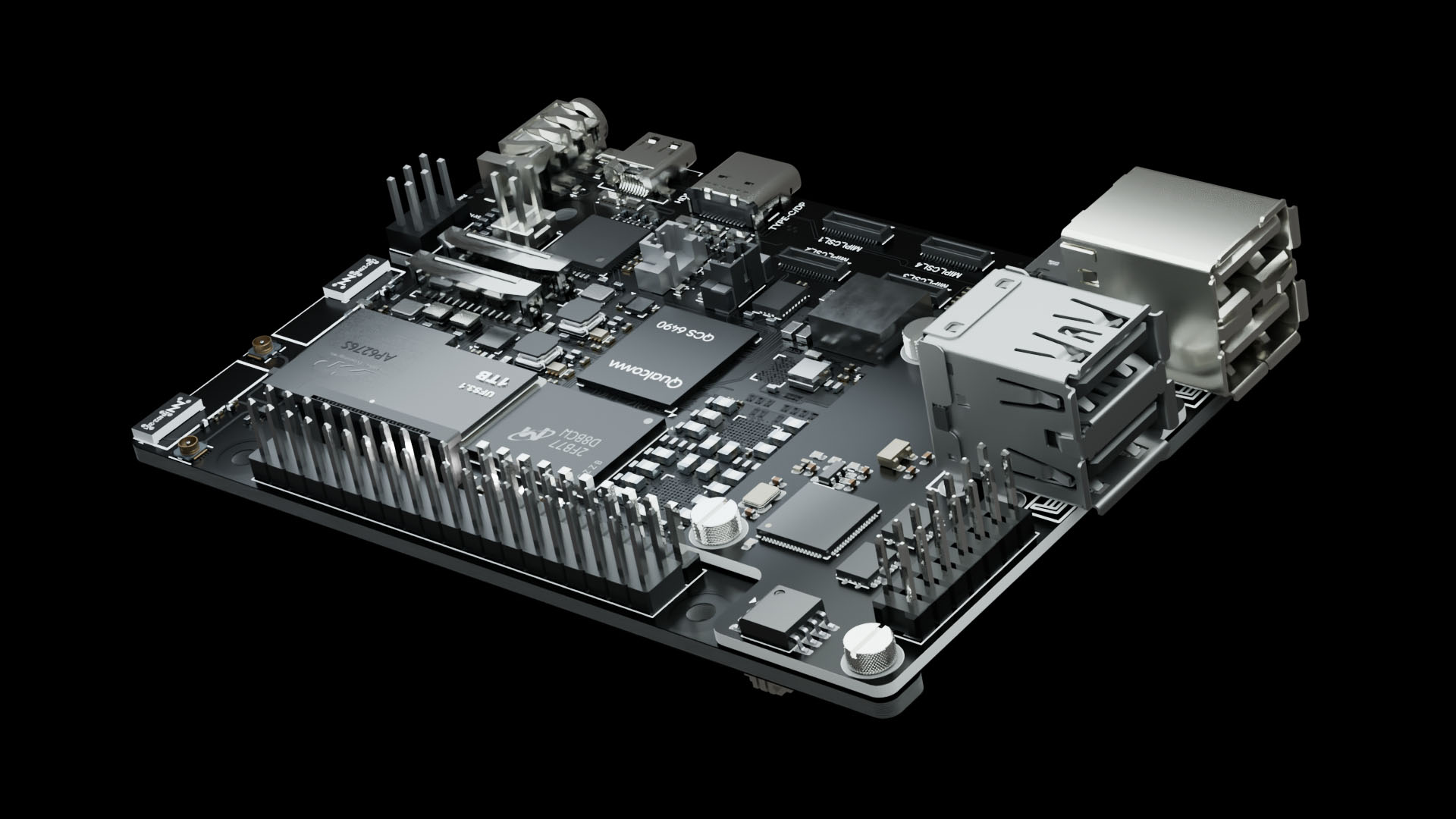

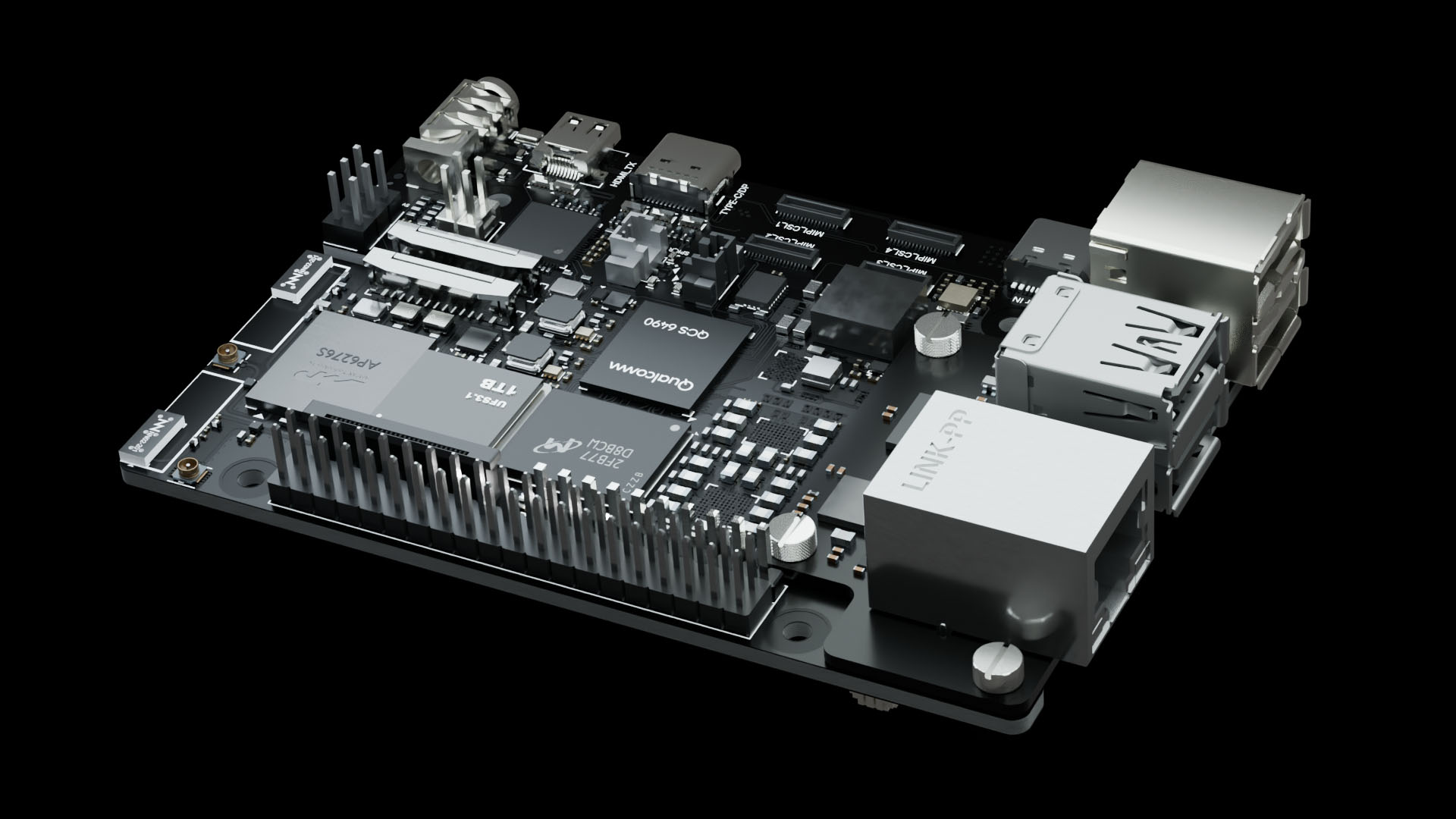

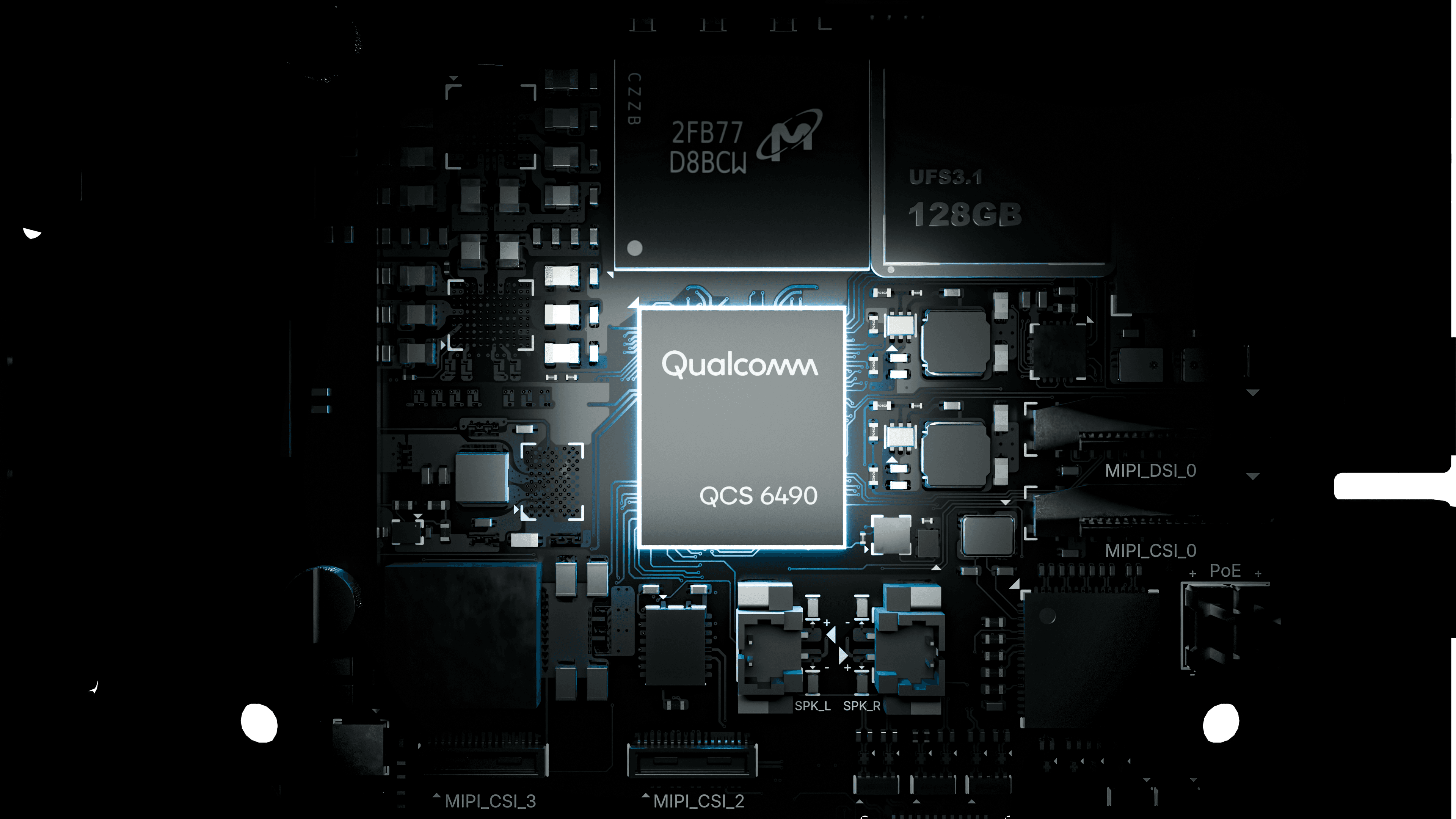

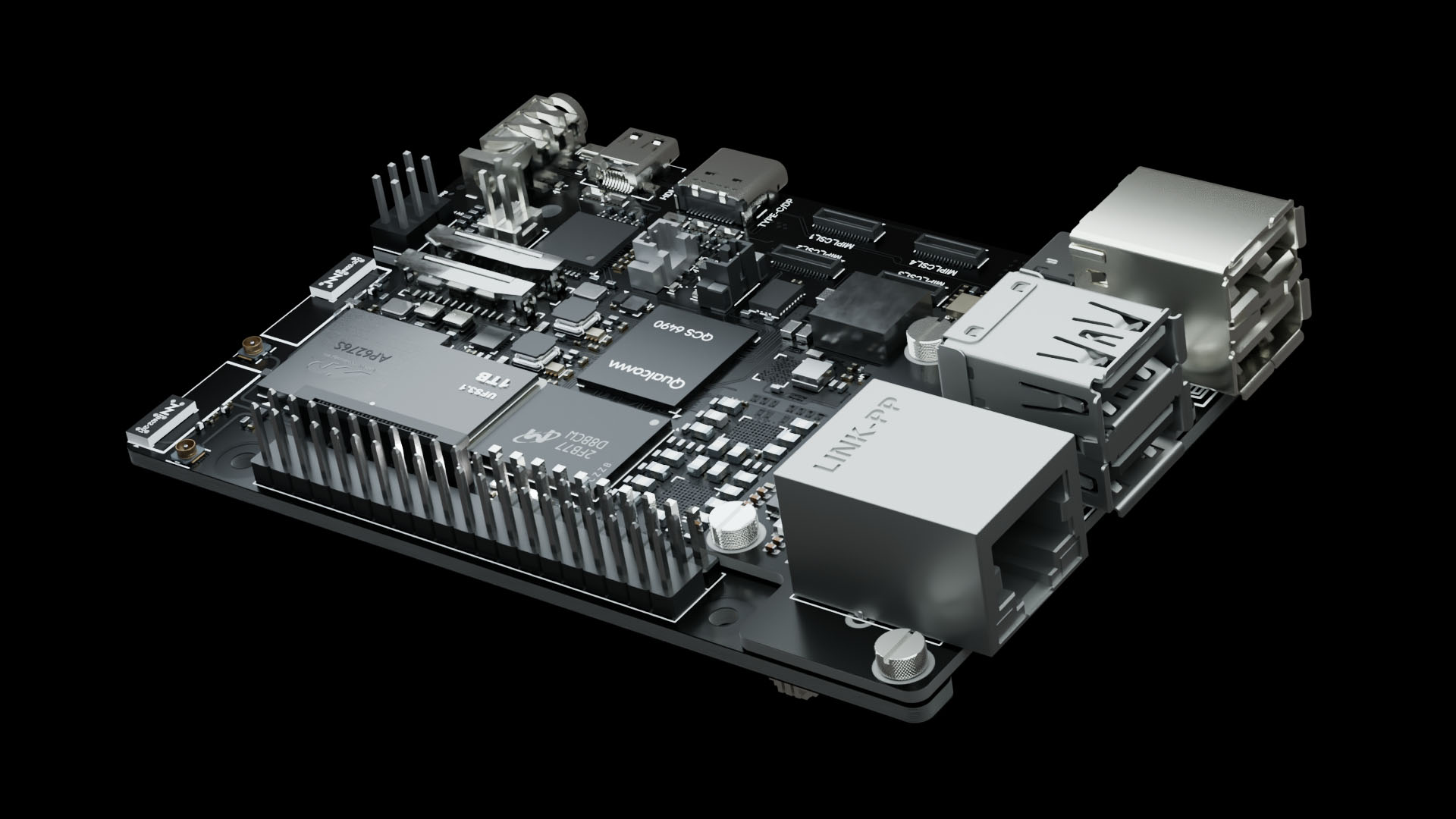

Powerful Qualcomm QCS6490 Processor Inside

12 TOPS AI NPU Processor for Running Local AI Models

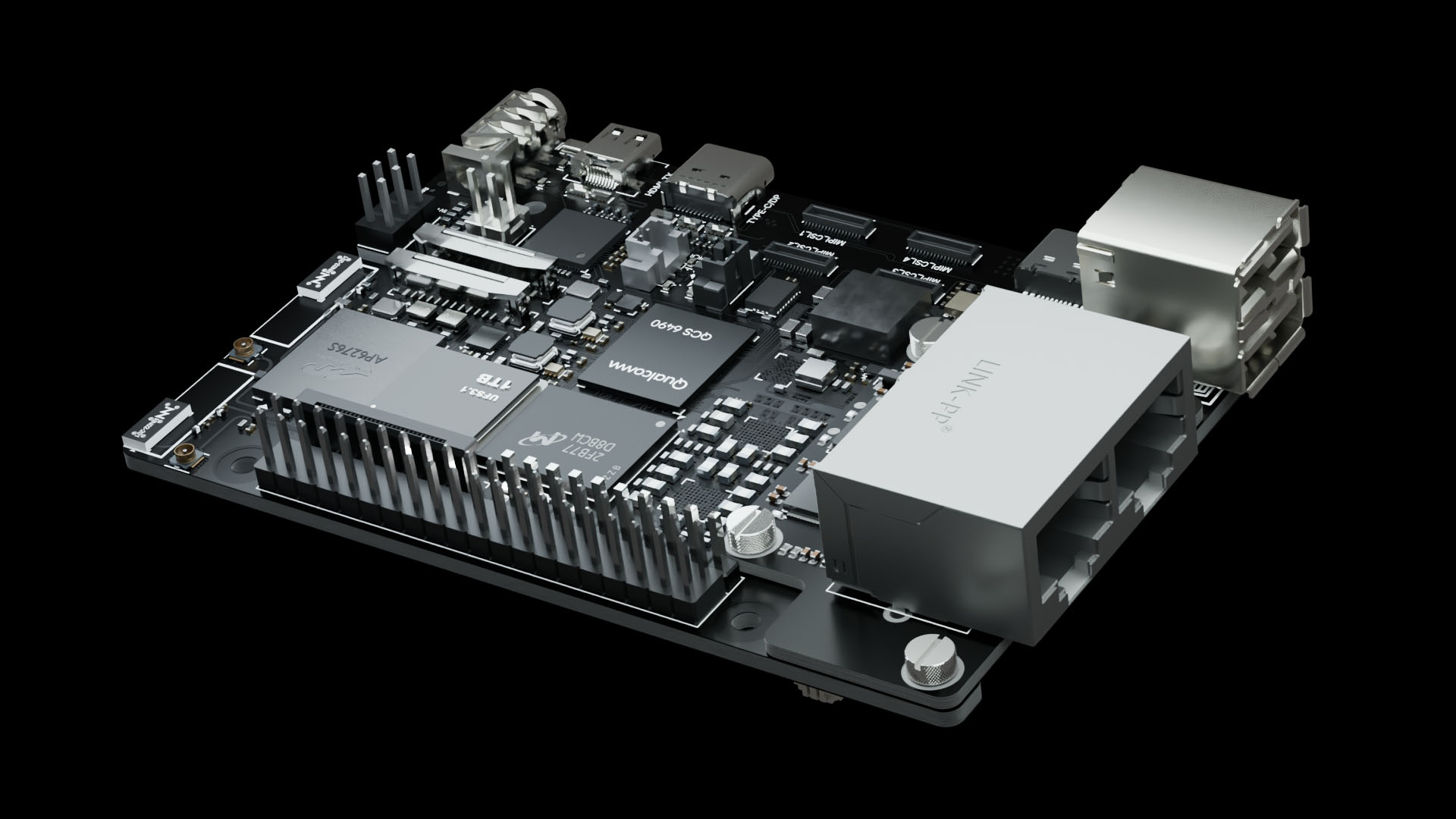

The End of Fixed Ports

Axon-Mini lets you build your own set of connectivity. Swap I/O modules to get the exact set of ports your product needs whether its USB, Ethernet, Storage or more. Stop adapting your products to your existing boards. Instead, let Axon-Mini adapt to your product. Just swap modules and create the communication setup for your application.

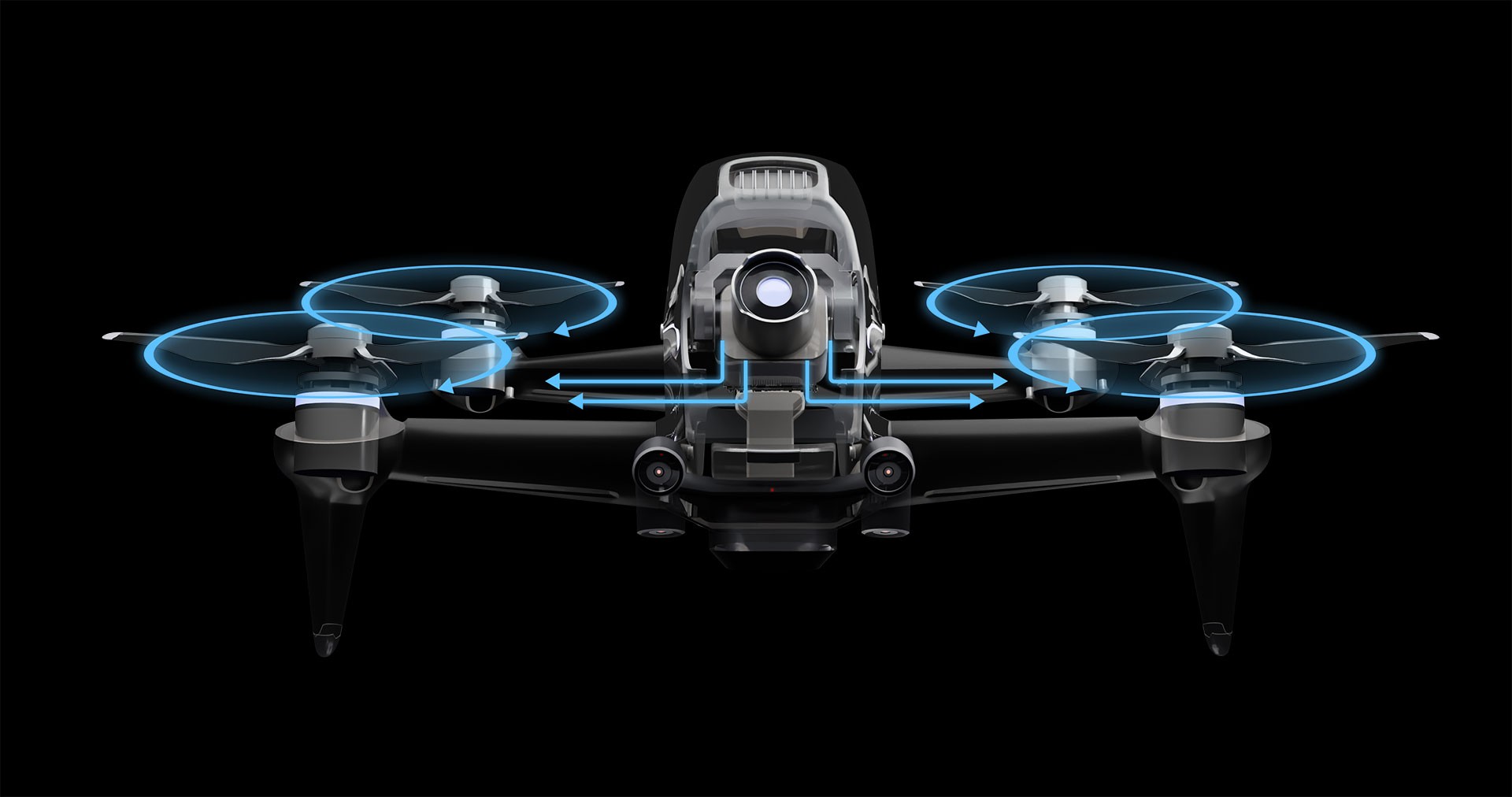

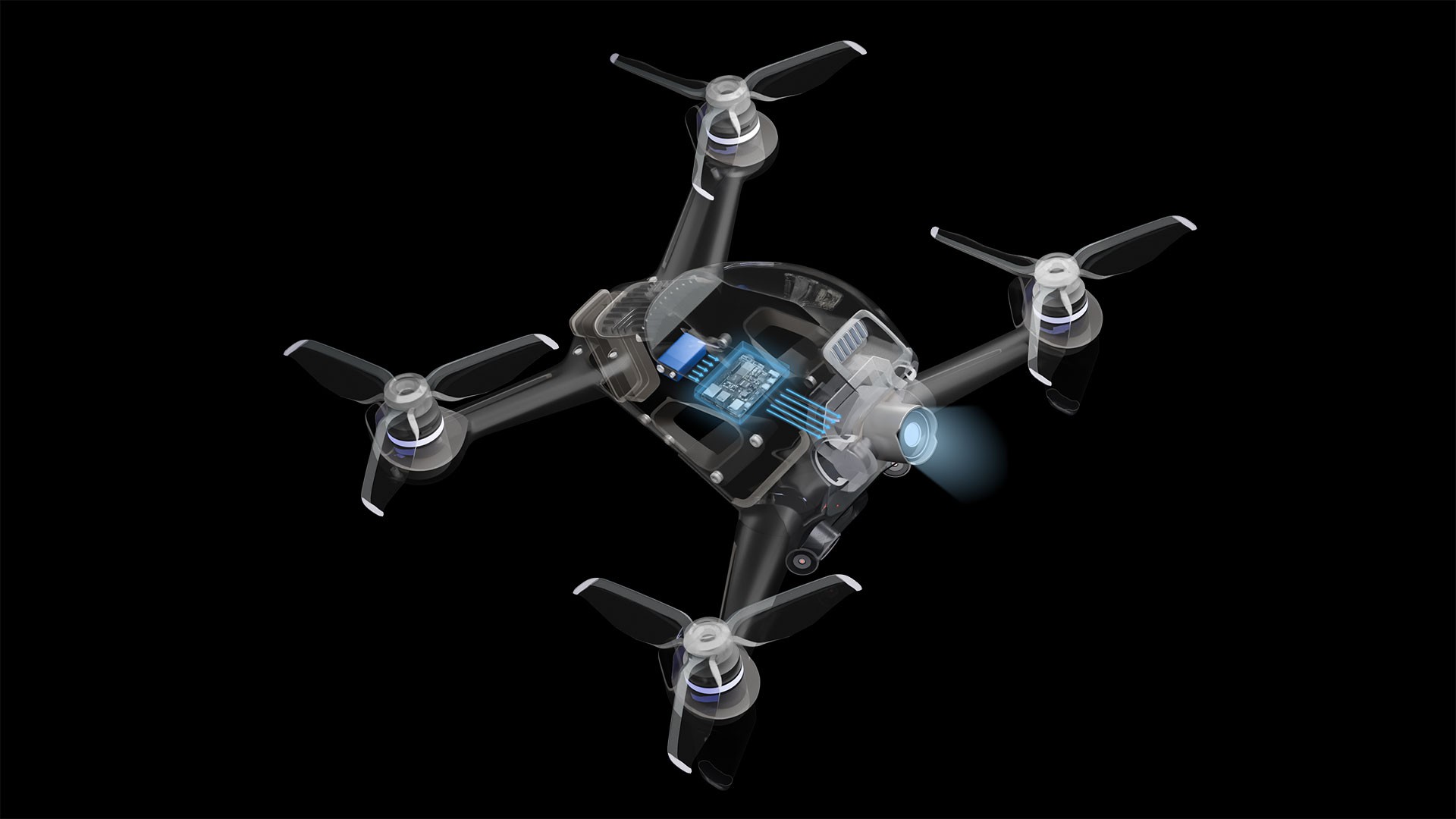

Axon-Mini Inside Drones

Real-time intelligence — On the aircraft
Stop relying on cloud latency for mission-critical decisions. Axon-Mini brings onboard compute that enables fast perception, stable control loops, and smarter autonomy, while letting you configure the ports and interfaces your drone actually needs through swappable modules. Get real-time onboard inference (12 TOPS AI) for autonomy, tracking, and inspection without sacrificing flight time.

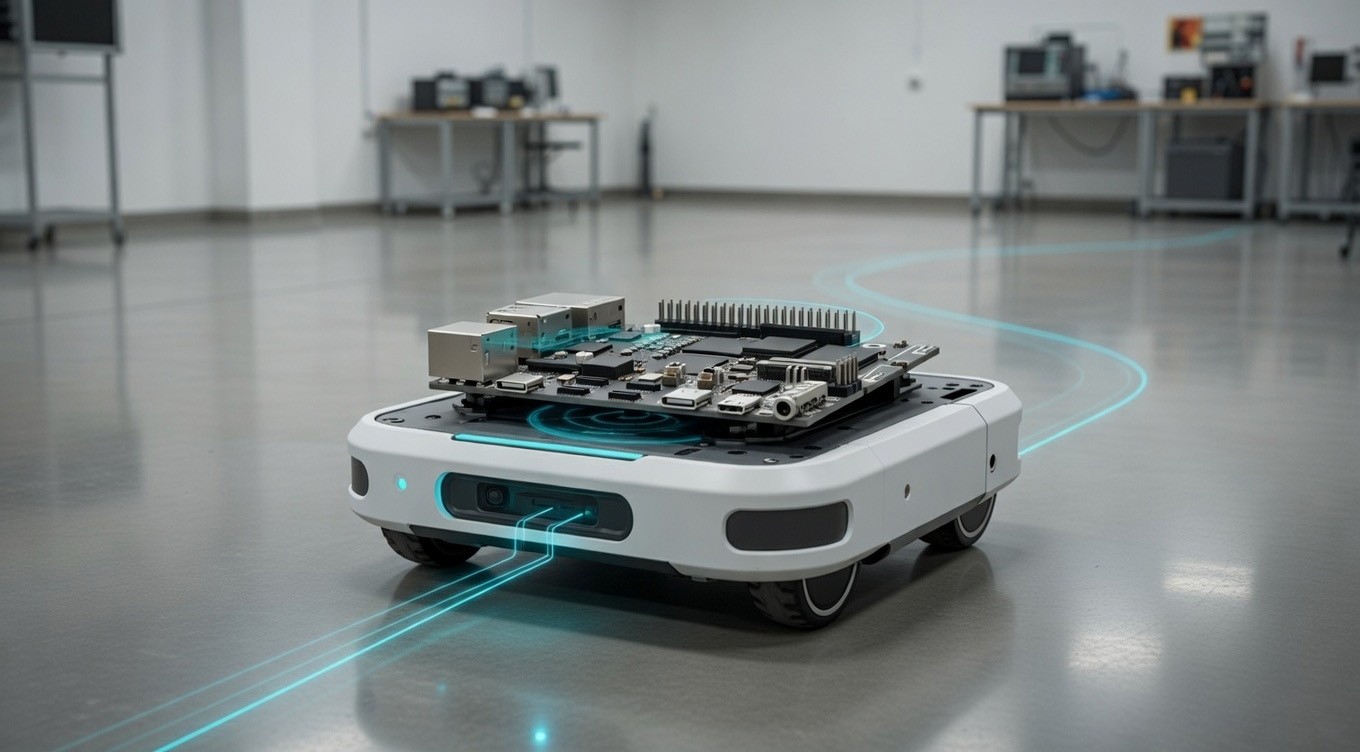

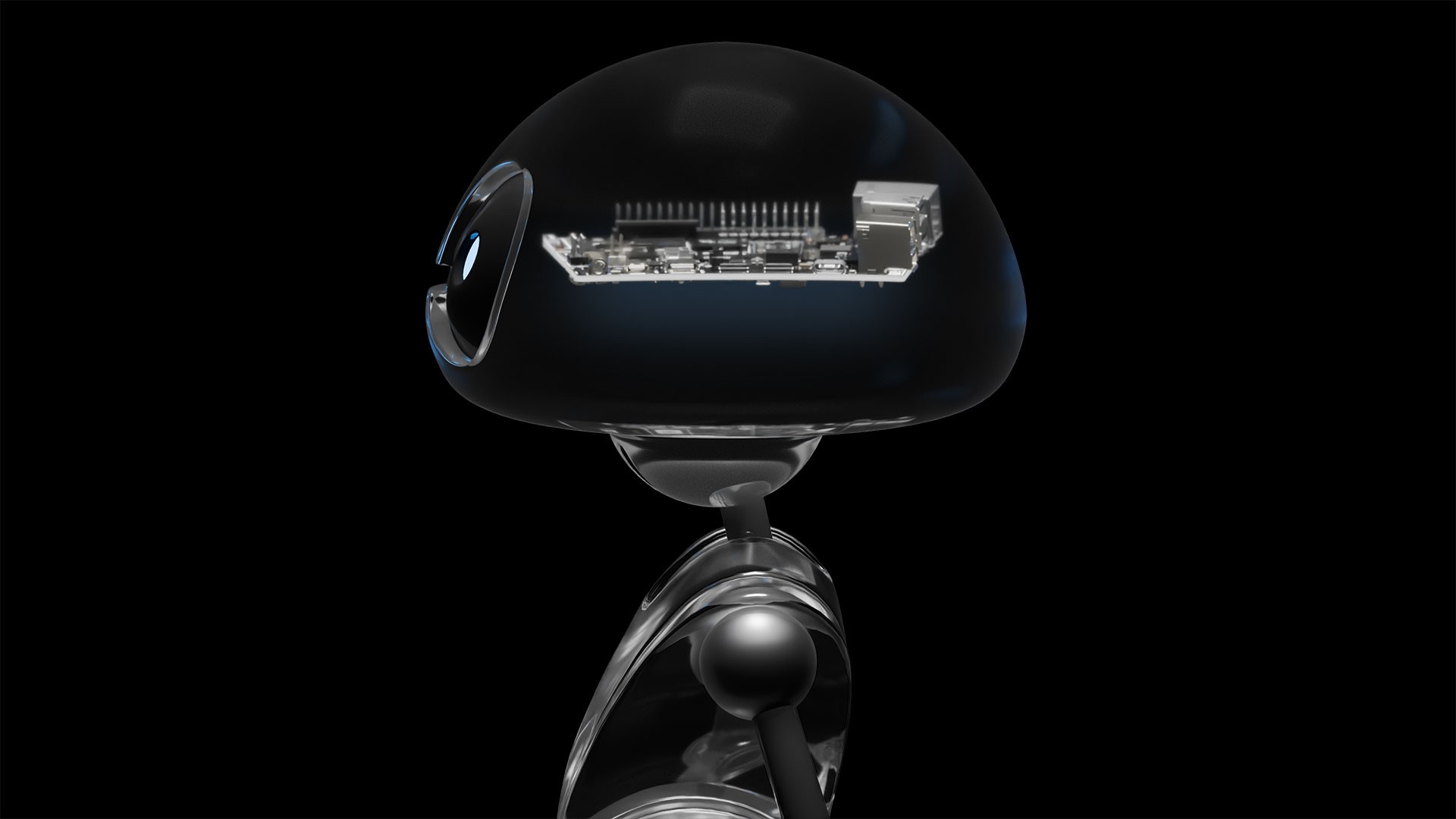

Most advanced edge AI hardware for Robotics

Deploy Axon-Mini in robots that need dependable local decision-making AMRs in warehouses, inspection robots on sites, and automation cells on factory floors. It supports real-time actions, continuous operation, and consistent performance even when network connectivity is limited with full-featured ROS2 support.

Low-Power AI at the Edge

By processing data locally, Axon-Mini reduces latency, improves reliability, and extends battery life, enabling efficient edge intelligence across a wide range of autonomous machines.

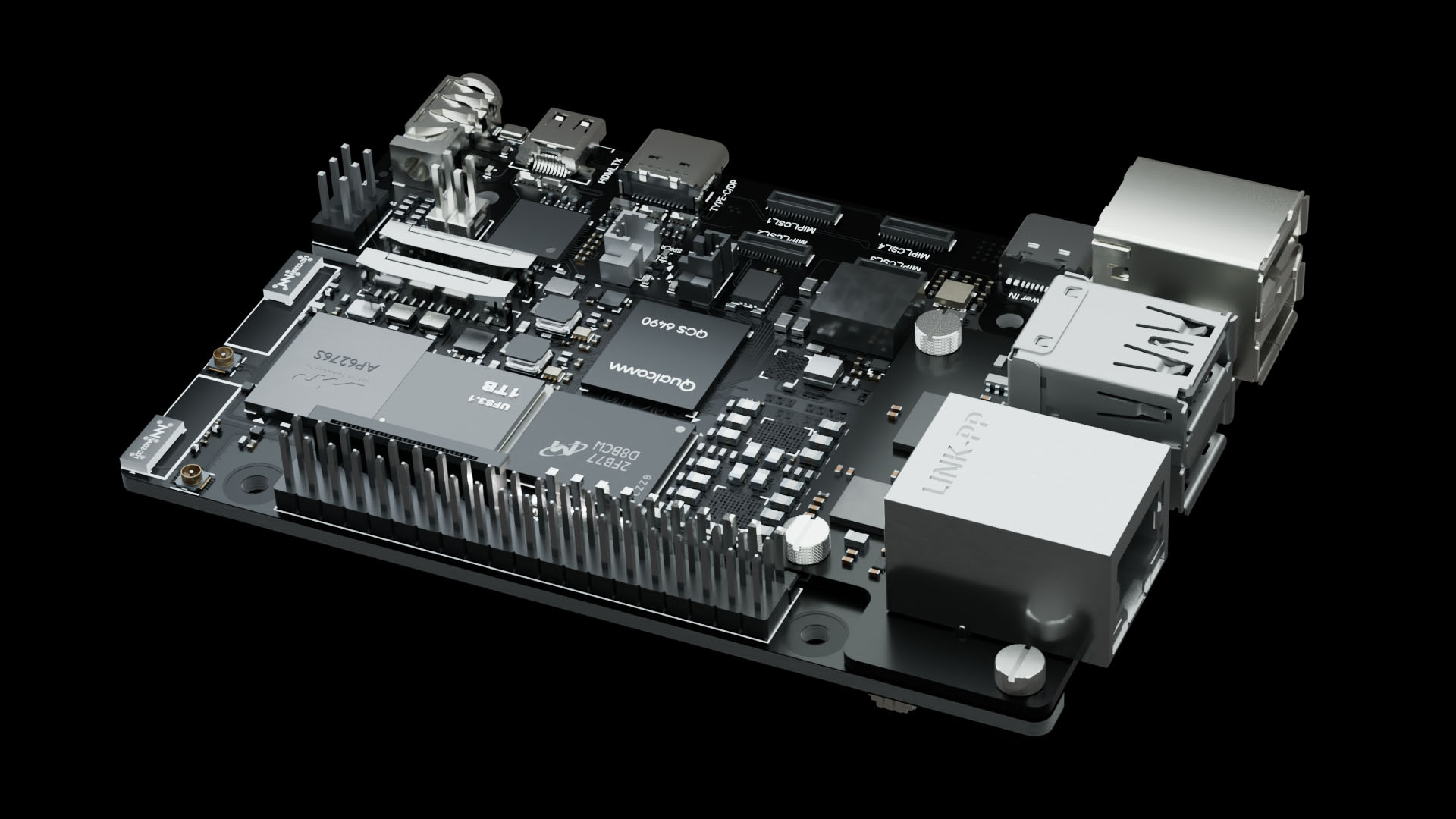

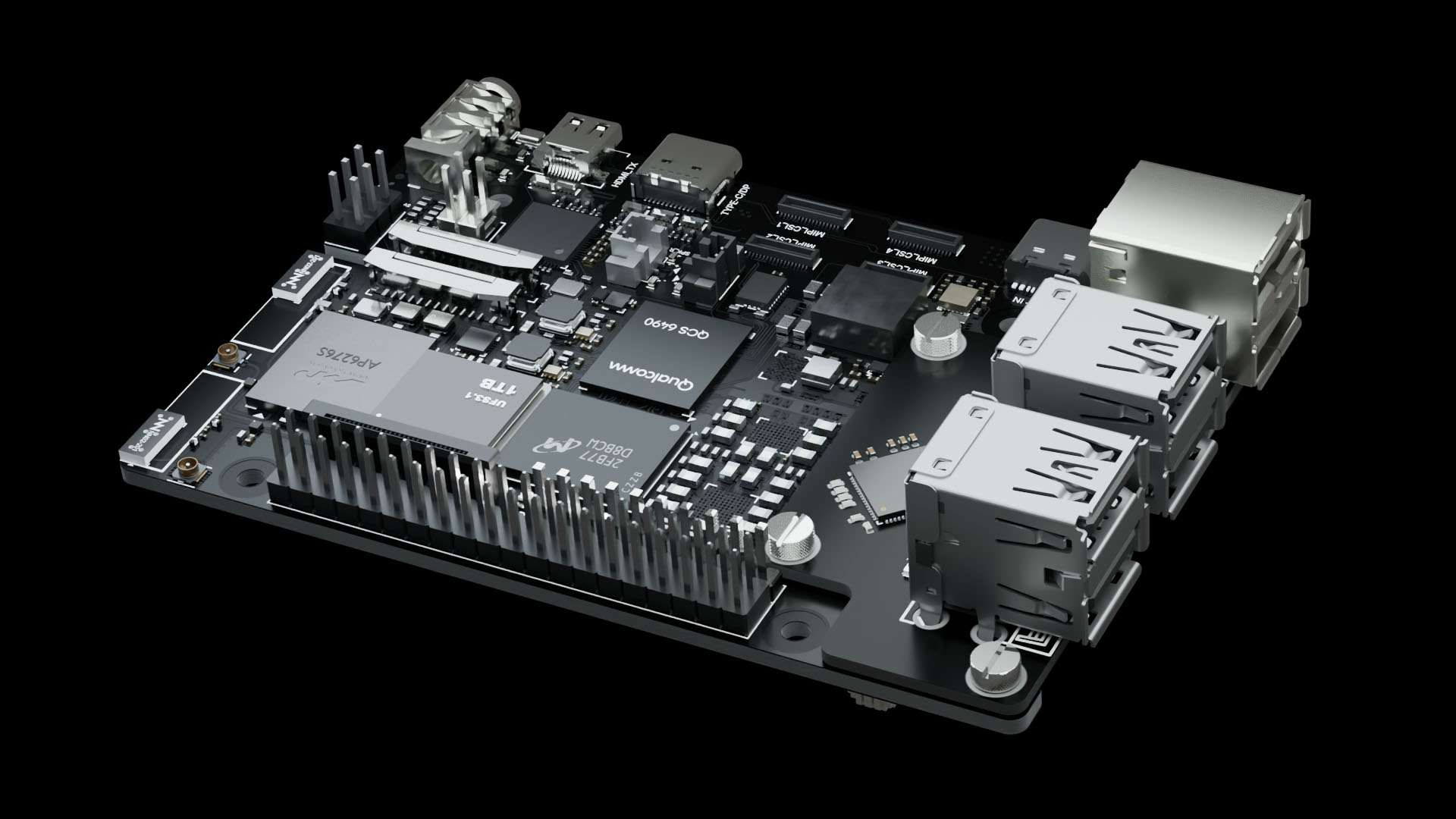

Key AXON-Mini Features

Designed for modern systems, the chipset delivers high-speed connectivity, flexible expansion, and efficient power management—providing a solid foundation for reliable and scalable designs.

Key AXON-Mini Features

Designed for modern systems, the chipset delivers high-speed connectivity, flexible expansion, and efficient power management—providing a solid foundation for reliable and scalable designs.

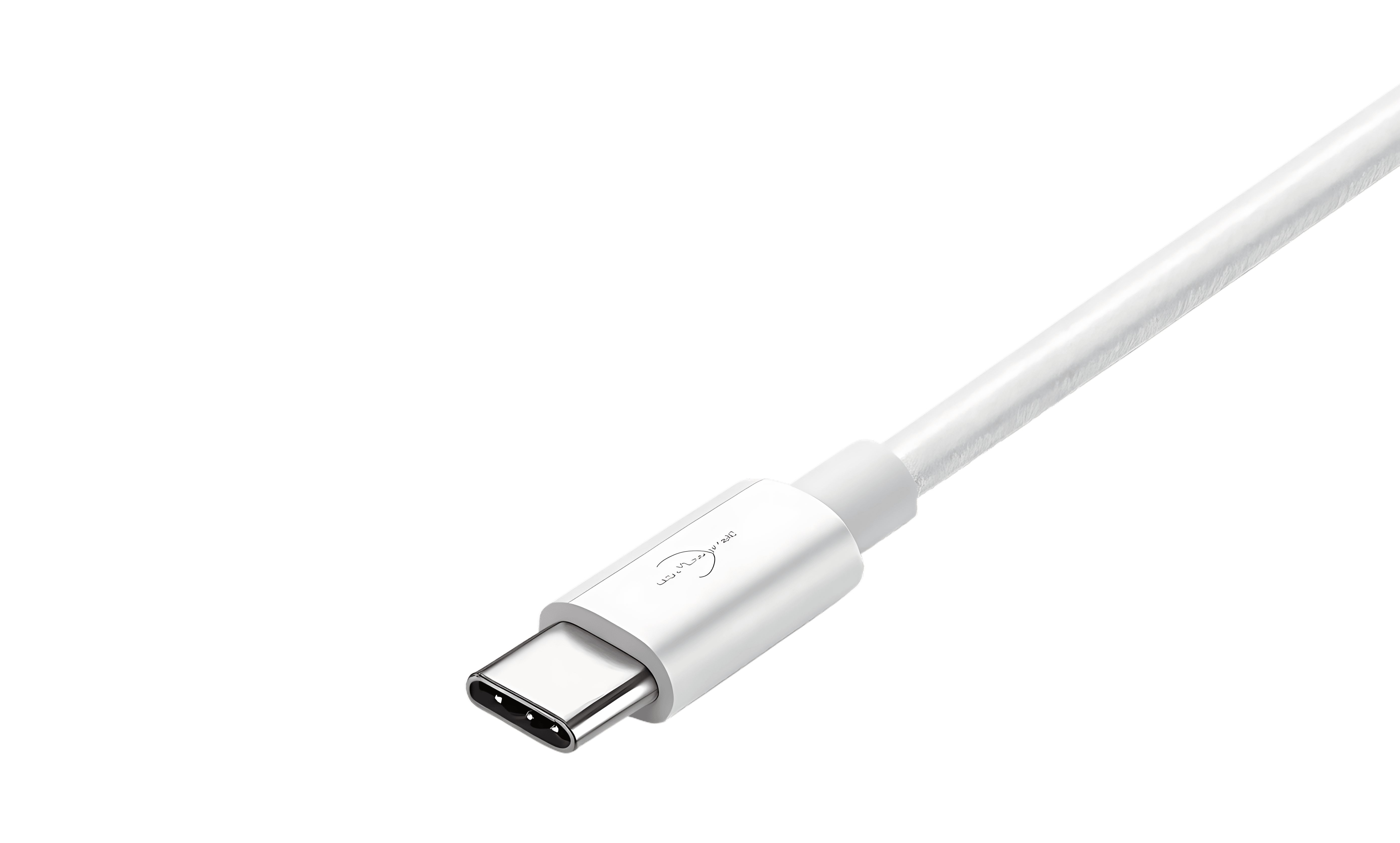

USB Type-C 3.1
5Gbps speed + DisplayPort
Upgradable UFS 3.1 Storage
Video Decode Support Up to 4K/60

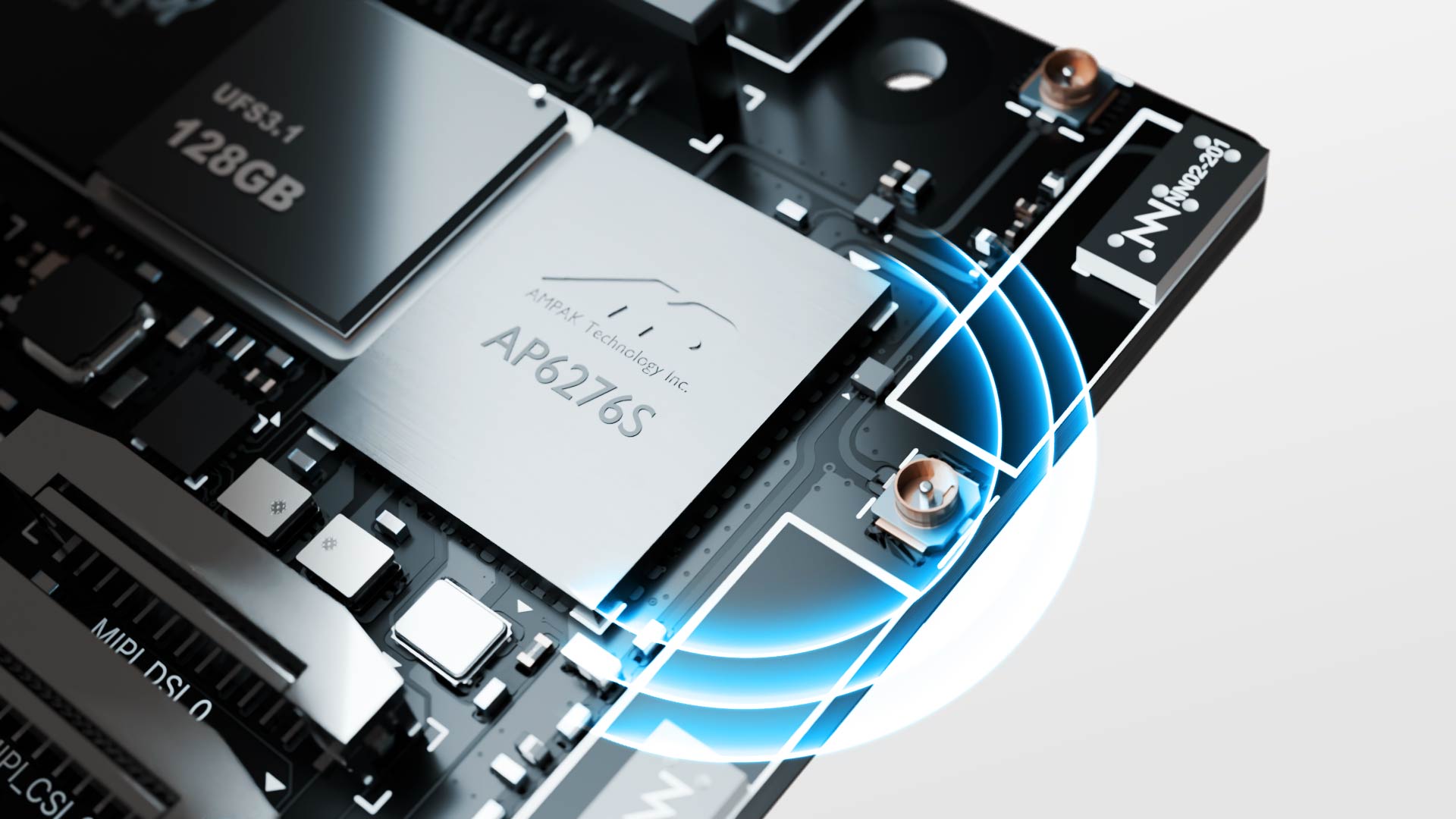

Virtual Antenna Inbuilt
Swappable Module Connection
Battery Charging Support
Power Over Ethernet Support
BT 5.3 Support
WiFi 6E Up to 1200 Mbps

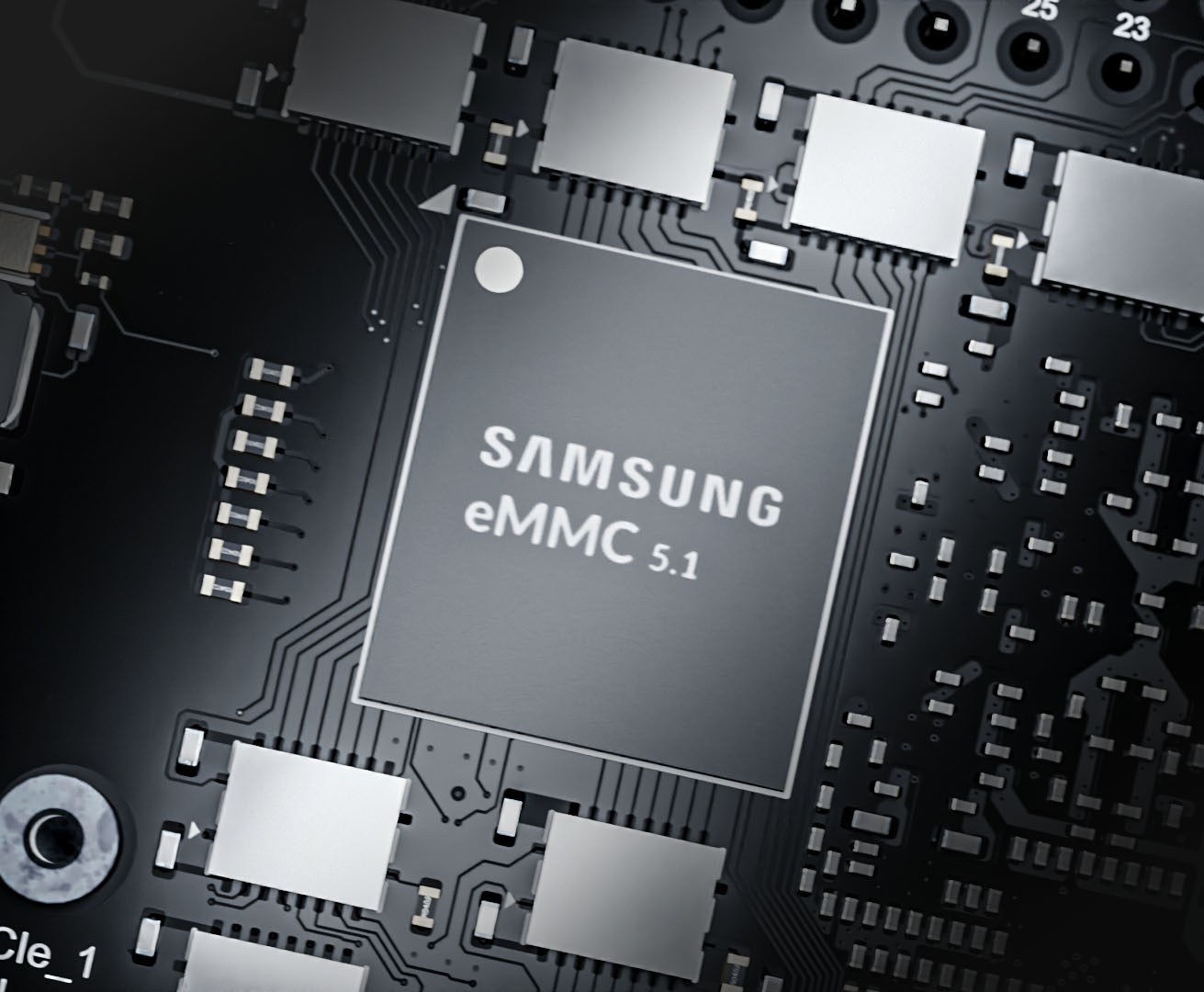

32/64/128GB EMMC 5.1 Storage
Qualcomm ® Kryo™ 670, Qualcomm® Kryo™ CPU, 8 Core, 64-bit Architecture
• Kryo Gold Prime One high-performance core at 2.7 GHz
• Kryo Gold Three high-performance cores at 2.4 GHz
• Kryo Silver Four low-power cores at 1.9 GHz

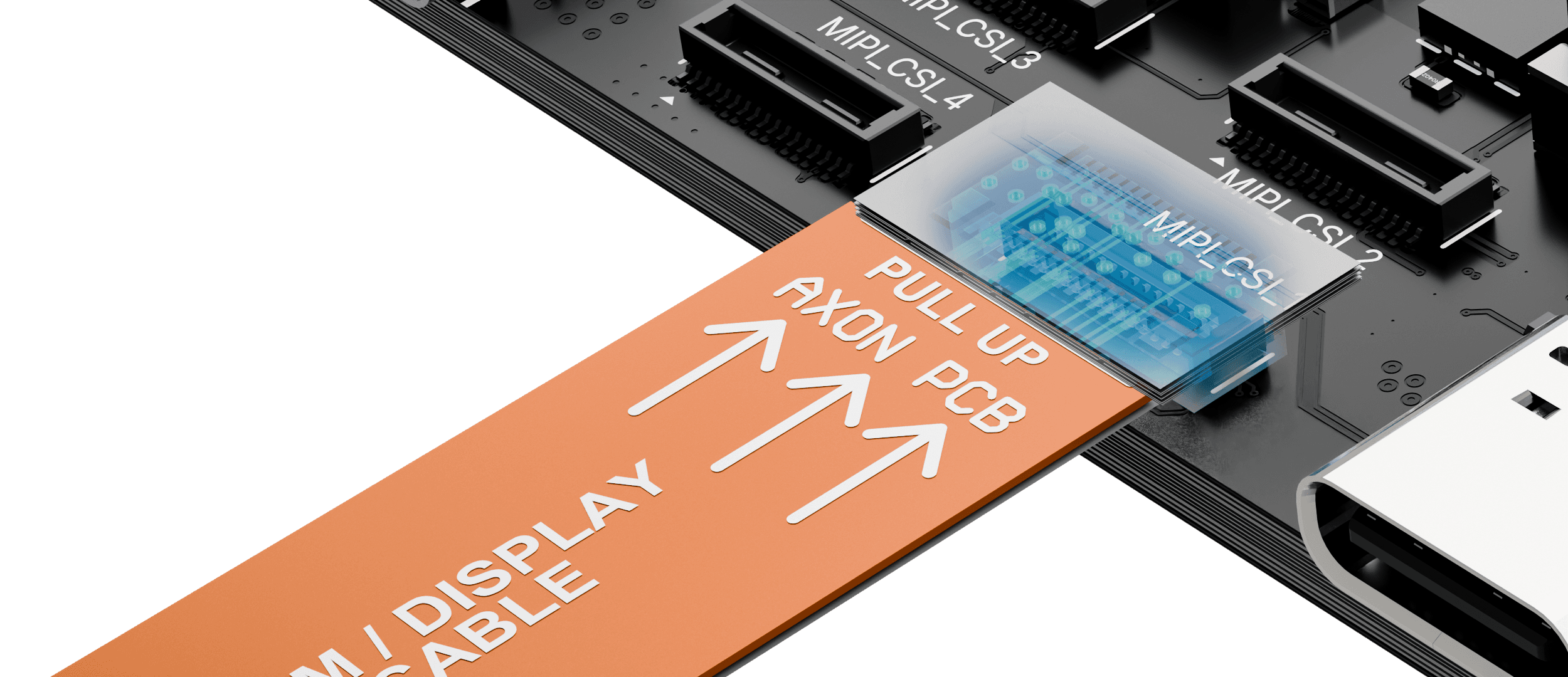

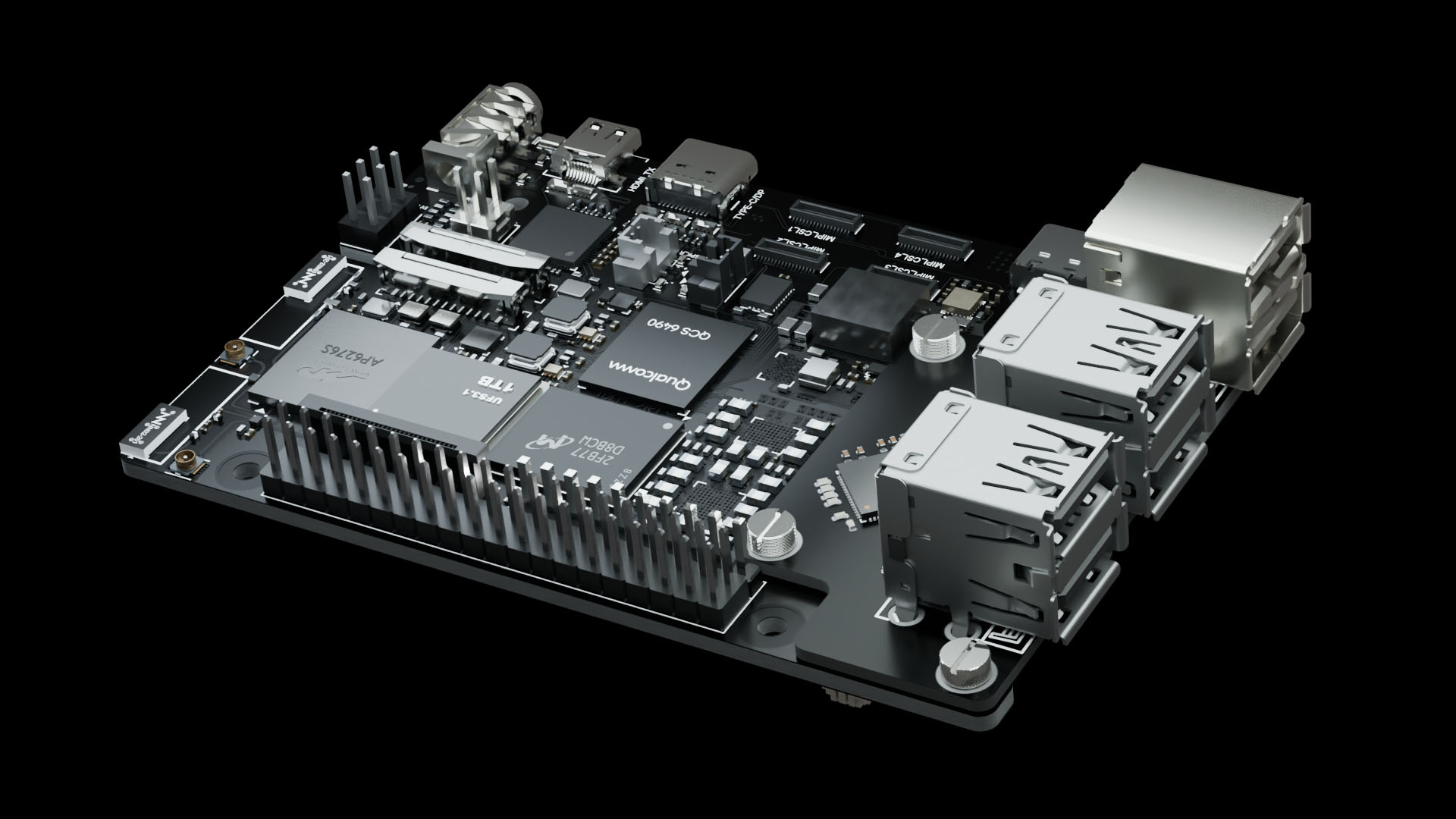

Built for Real-World Applications

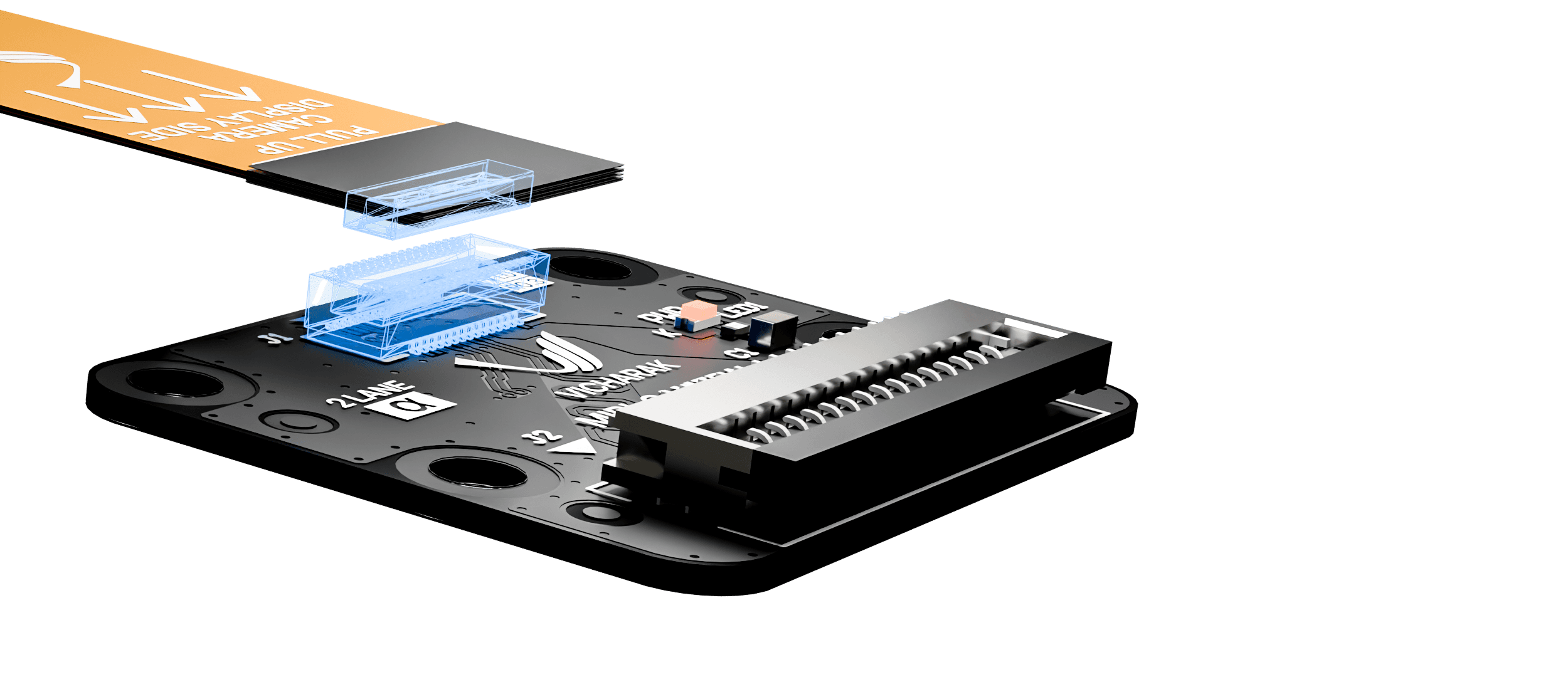

Features MIPI camera interfaces, FPC display support, and Pogo Pads for debugging, enabling flexible connectivity, fast development, and efficient testing from early prototyping to production.

Built for Real-World Applications

Features MIPI camera interfaces, FPC display support, and Pogo Pads for debugging, enabling flexible connectivity, fast development, and efficient testing from early prototyping to production.

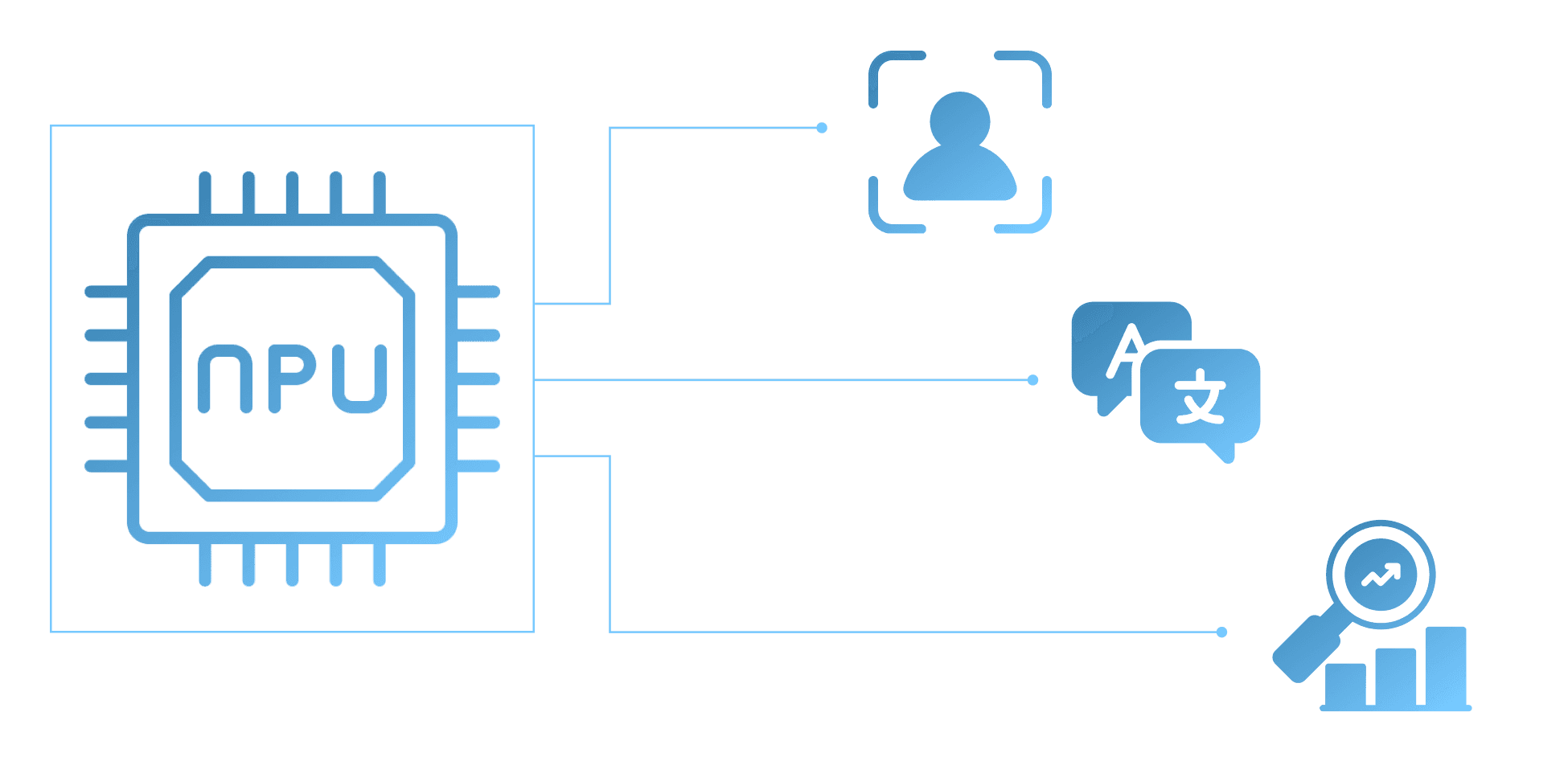

Edge AI and Machine Learning

With its 12(int8) TOPS NPU and support for various deep learning frameworks, it's suitable for AI applications like image recognition, natural language processing, and predictive analytics.

Edge AI and Machine Learning

With its 12(int8) TOPS NPU and support for various deep learning frameworks, it's suitable for AI applications like image recognition, natural language processing, and predictive analytics.

Embedded Systems

Its small form factor and powerful specs make it ideal for various embedded system applications.

Media Center / Home Theater PC

8K video decoding and encoding capabilities make it perfect for high-quality media playback and streaming.

Video Decode: 1x 4K60, 2x 4K30, 4x 1080p60

Formats: H.264, H.265, VP9

Video Encode:  1x 4K30, 4x 1080p30

Formats: H.264, H.265

Embedded Systems

Its small form factor and powerful specs make it ideal for various embedded system applications.

Media Center / Home Theater PC

8K video decoding and encoding capabilities make it perfect for high-quality media playback and streaming.

Video Decode: 1x 4K60, 2x 4K30, 4x 1080p60

Formats: H.264, H.265, VP9

Video Encode:  1x 4K30, 4x 1080p30

Formats: H.264, H.265

Digital Signage

The Dual display interfaces (HDMI and Type-C PD or DSI) make it ideal for controlling multiple screens in retail, advertising, or information display settings.

Robotics

Axon-Mini is a full-fledged robotics computer with full ROS 2 support and on-device AI for real-world Physical AI products. Whether you’re building an underwater robot, a flying robot, an industrial machine, or a healthcare robot, Axon-Mini delivers a complete hardware + software solution, built to deploy, scale, and evolve with your robot.

Digital Signage

The Dual display interfaces (HDMI and Type-C PD or DSI) make it ideal for controlling multiple screens in retail, advertising, or information display settings.

Robotics

Axon-Mini is a full-fledged robotics computer with full ROS 2 support and on-device AI for real-world Physical AI products. Whether you’re building an underwater robot, a flying robot, an industrial machine, or a healthcare robot, Axon-Mini delivers a complete hardware + software solution, built to deploy, scale, and evolve with your robot.

IoT Gateway

With strong network capabilities (WiFi 6, Bluetooth 5.2, Gigabit Ethernet), it can serve as a powerful IoT hub or gateway.

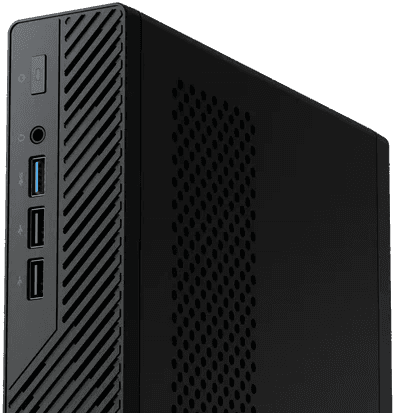

Mini Server

Large RAM capacity and NVMe SSD support allow it to function as a small, energy-efficient server for various applications.

IoT Gateway

With strong network capabilities (WiFi 6, Bluetooth 5.2, Gigabit Ethernet), it can serve as a powerful IoT hub or gateway.

Mini Server

Large RAM capacity and NVMe SSD support allow it to function as a small, energy-efficient server for various applications.

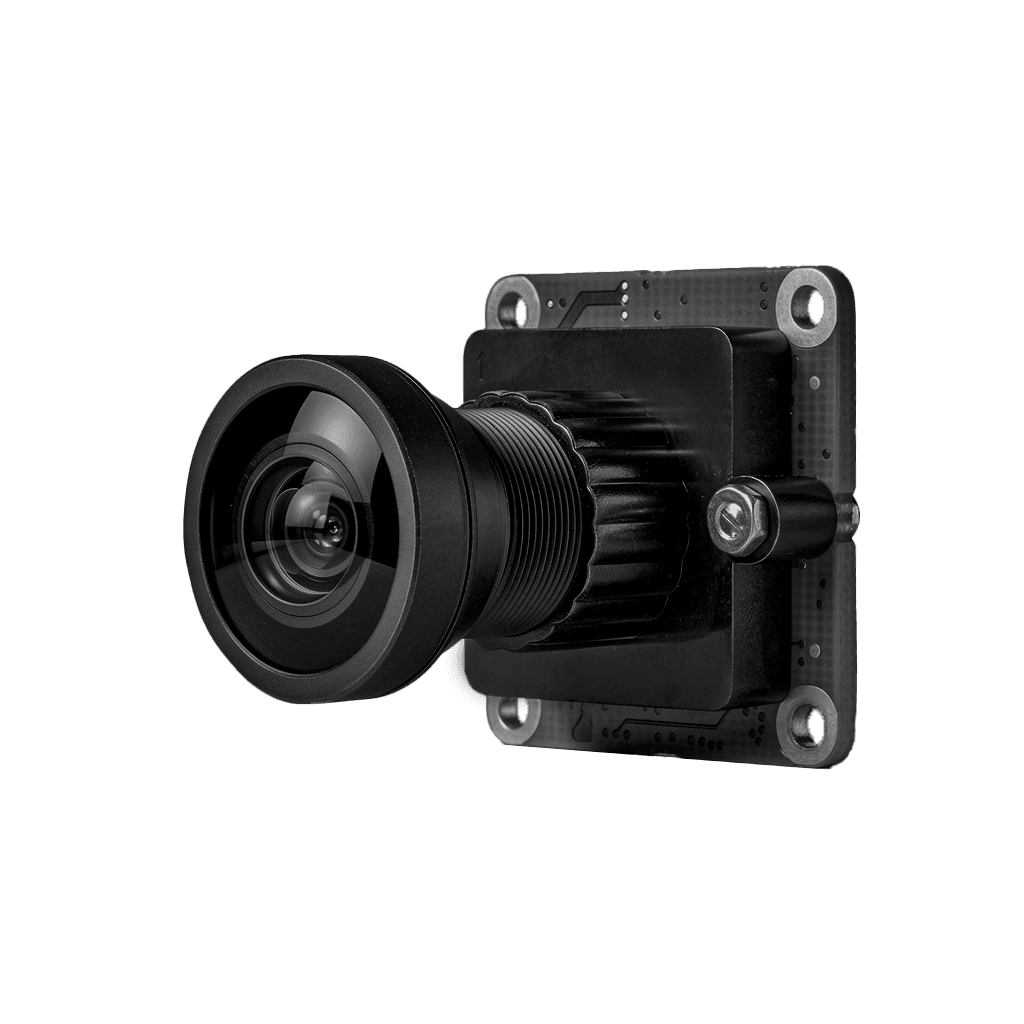

Computer Vision Applications

Axon-Mini is built for advanced vision, it has triple 14-bit ISPs plus two lite ISPs , enabling multi-camera capture and processing, supporting up to 3× 22 MP cameras and 1× 64 MP at 30 fps (sensor/interface dependent).

Computer Vision Applications

Axon-Mini is built for advanced vision, it has triple 14-bit ISPs plus two lite ISPs , enabling multi-camera capture and processing, supporting up to 3× 22 MP cameras and 1× 64 MP at 30 fps (sensor/interface dependent).

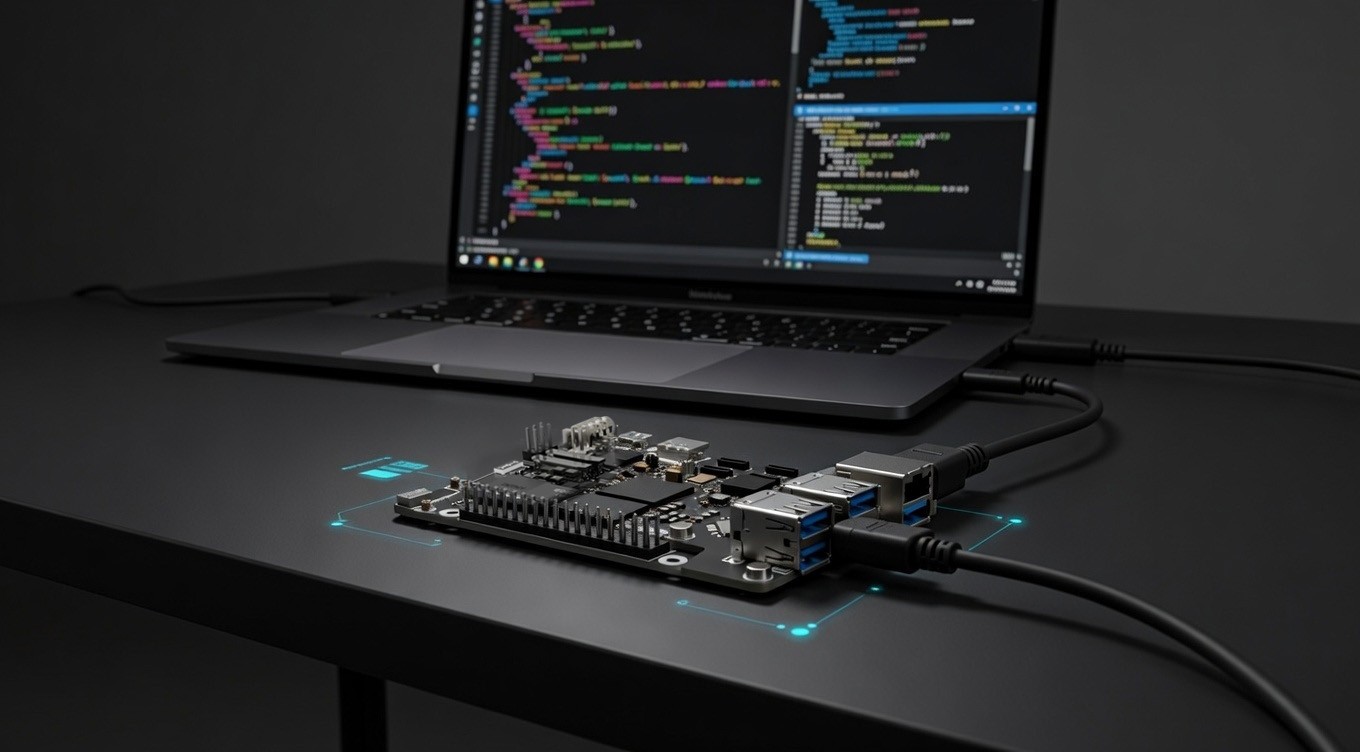

Development and Prototyping

Its maker-friendly design with Pogo Pads, FPC headers, and MIPI interfaces make it suitable for hardware prototyping and software development.

Development and Prototyping

Its maker-friendly design with Pogo Pads, FPC headers, and MIPI interfaces make it suitable for hardware prototyping and software development.

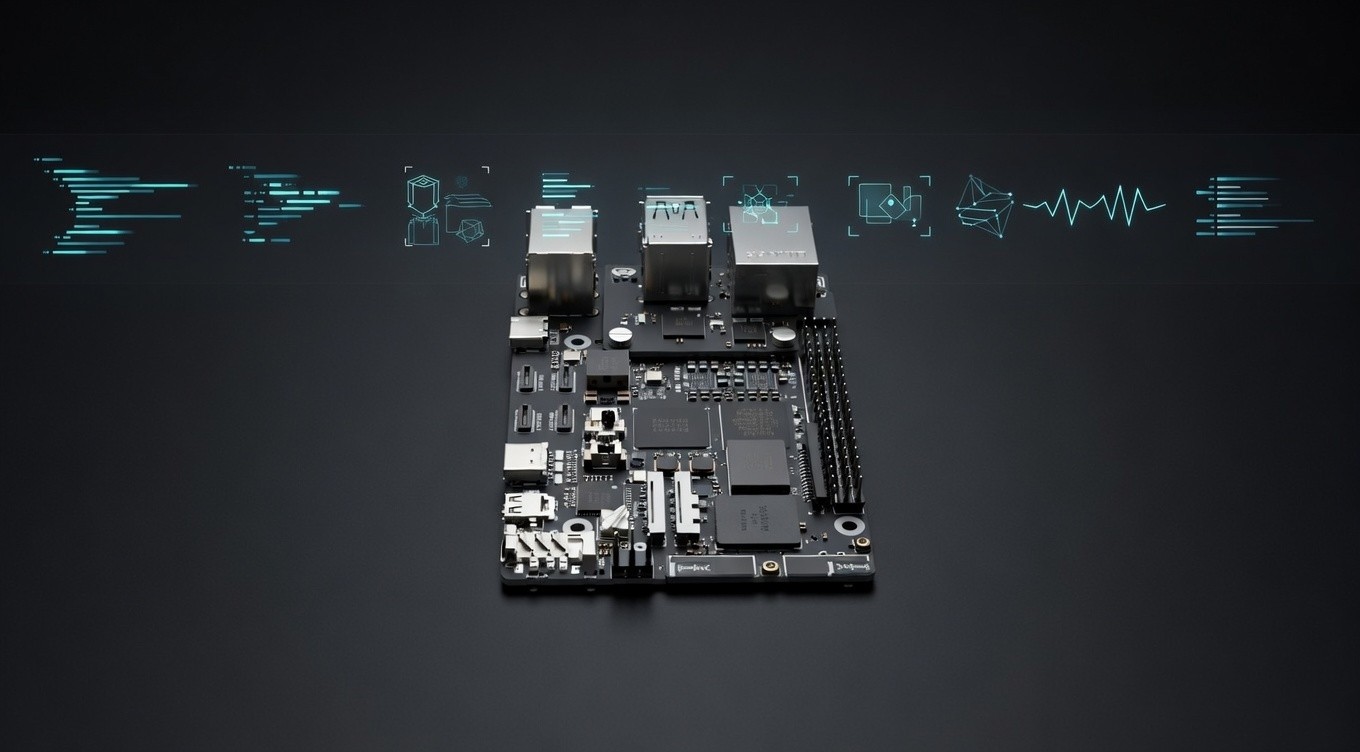

Axon-mini isn’t just an SBC, it’s a full Linux computer in a tiny, powerful form factor, capable of running 70,000+ Linux software packages (Debian ecosystem) for building real products: robotics (ROS 2), vision, gateways, kiosks, and on-device AI.

Examples of powerful Linux software Axon-Mini can run

Developer & productivity

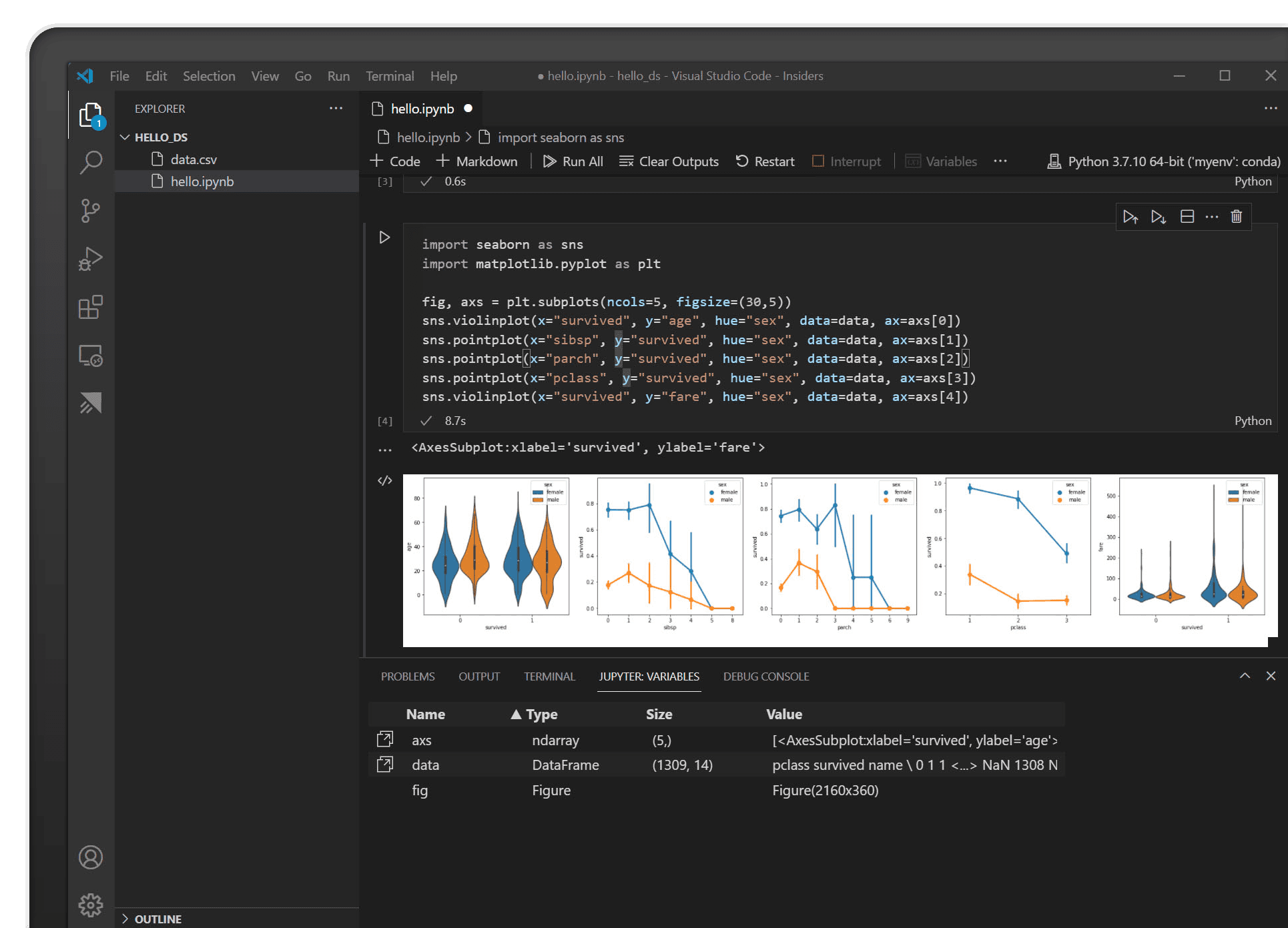

  • Visual Studio Code (remote dev, Python/C/C++ workflows)

  • Git, CMake, GCC/Clang, Python toolchains

  • Docker / Podman for containerized deployment

  • Node.js for dashboards and device UIs

Developer & productivity

  • Visual Studio Code (remote dev, Python/C/C++ workflows)

  • Git, CMake, GCC/Clang, Python toolchains

  • Docker / Podman for containerized deployment

  • Node.js for dashboards and device UIs

Feature strip

  • VS Code

  • Docker

  • ROS 2

  • RViz2

  • OpenCV

  • GStreamer

  • FFmpeg

  • WireGuard

  • MQTT

  • Nginx

Feature strip

  • VS Code

  • Docker

  • ROS 2

  • RViz2

  • OpenCV

  • GStreamer

  • FFmpeg

  • WireGuard

  • MQTT

  • Nginx

Vision, media & streaming

  • GStreamer (camera pipelines, streaming)

  • OpenCV (vision + preprocessing)

  • FFmpeg (encode/decode, record, transcode)

  • RTSP/streaming servers (for camera deployments)

Vision, media & streaming

  • GStreamer (camera pipelines, streaming)

  • OpenCV (vision + preprocessing)

  • FFmpeg (encode/decode, record, transcode)

  • RTSP/streaming servers (for camera deployments)

Networking, security & device management

  • OpenSSH (remote access)

  • WireGuard / OpenVPN (secure remote networking)

  • Nginx (local web UI / reverse proxy)

  • Mosquitto (MQTT) (IoT messaging)

  • Prometheus Node Exporter + Grafana (monitoring dashboards)

Networking, security & device management

  • OpenSSH (remote access)

  • WireGuard / OpenVPN (secure remote networking)

  • Nginx (local web UI / reverse proxy)

  • Mosquitto (MQTT) (IoT messaging)

  • Prometheus Node Exporter + Grafana (monitoring dashboards)

Axon-Mini isn’t just an SBC, it’s a full Linux computer in a tiny, powerful form factor, capable of running 70,000+ Linux software packages (Debian ecosystem) for building real products: robotics (ROS 2), vision, gateways, kiosks, and on-device AI.

Robotics (ROS 2)

  • ROS 2 (Humble/Iron/Jazzy workflows)

  • RViz2 (visualization)

  • Gazebo / Ignition (simulation, when used)

  • MoveIt 2 (robot arm planning)

  • Nav2 (navigation stack)

Robotics (ROS 2)

  • ROS 2 (Humble/Iron/Jazzy workflows)

  • RViz2 (visualization)

  • Gazebo / Ignition (simulation, when used)

  • MoveIt 2 (robot arm planning)

  • Nav2 (navigation stack)

Edge AI workflows

  • ONNX Runtime (model inference)

  • TensorFlow Lite (edge inference)

  • PyTorch (where practical for your workload)

  • JupyterLab (rapid prototyping)

Edge AI workflows

  • ONNX Runtime (model inference)

  • TensorFlow Lite (edge inference)

  • PyTorch (where practical for your workload)

  • JupyterLab (rapid prototyping)

Technical Specs

CPU

Qualcomm® Universal Bandwidth Compression

(UBWC) with camera, display, GPU, video, and

compute DSP

Qualcomm ® Kryo™ 670, Qualcomm® Kryo™ CPU, 8 Core, 64-bit Architecture

Kryo Gold plus: high-performance core up to 2.7 GHz

Kryo Gold: three high-performance cores at 2.4 GHz

Kryo Silver: four low-power cores at 1.9 GHz

GPU

Qualcomm® Adreno™ 643L, support OpenGL®

ES 3.2, DirectX® FL 12, OpenCL™ 2.0, Vulkan®

VPU

Adreno VPU 633 – fifth-generation UHD video processing unit

Video decode up to 4K60 for H.264/H.265/VP9

Video encode: Up to 4K30 for H.264/H.265

Video concurrency: 1080p60 decode and 1080p60 encode/ 4K30 decode + 1080p30 encode

HDR playback: Support for HDR10 and HDR10+

ISP

Triple 14-bit image signal processing (ISP) + two

lite ISP 22 + 22 + 22 MP, 64 MP/30 fps

DSP/NPU

Hexagon DSP and 12 TOPS NPU

Storage

Onboard 32GB High - Speed eMMC 5.1

Onboard expandable UFS 3.1

Support PCle 3.0x2 NVMe Storage via B2B Connector

Memory

8GB/16GB LPDDR5 3200 MHz

WIRELESS

Integrated WiFi-BT Combo Module (AMPAKAP6276S)

WiFi 2.4 GHz/5GHz/6GHz 2T2R

Bluetooth® 5.3

Onboard Virtual Antenna and U.FL

Connector with RF Switch
